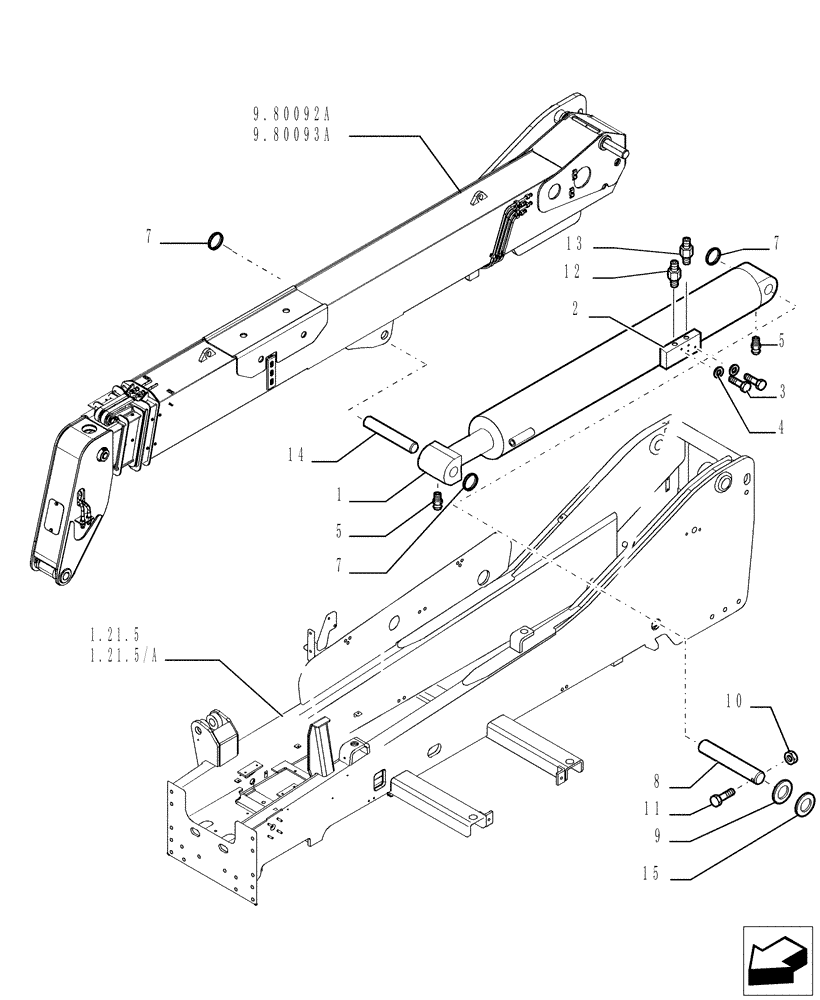

Запчасти Case TX945 (1.11.1A[01]) - LIFT CYLINDER - VERSION (03-04) (35) - HYDRAULIC SYSTEMS

1

87590838

LIFT CYLINDER,Double Acting, 100mm Rod, 1220mm Stroke

ASSY SEE PAG.2

1шт.

2

76076158

HYDRAULIC VALVE

1шт.

3

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

4

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

7

11070374

LOCKING RING

3шт.

8

87558845

PIN,70mm OD x 541mm L

1шт.

9

87354362

O-RING

1шт.

10

12577521

NUT,M12 x 1.75

1шт.

11

11114031

BOLT,Hex, M12 x 90, 10.9

1шт.

12

85803486

FITTING,1 7/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

13

83962538

FITTING,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

14

84175180

PIN

1шт.

15

85824153

WASHER

1шт.
