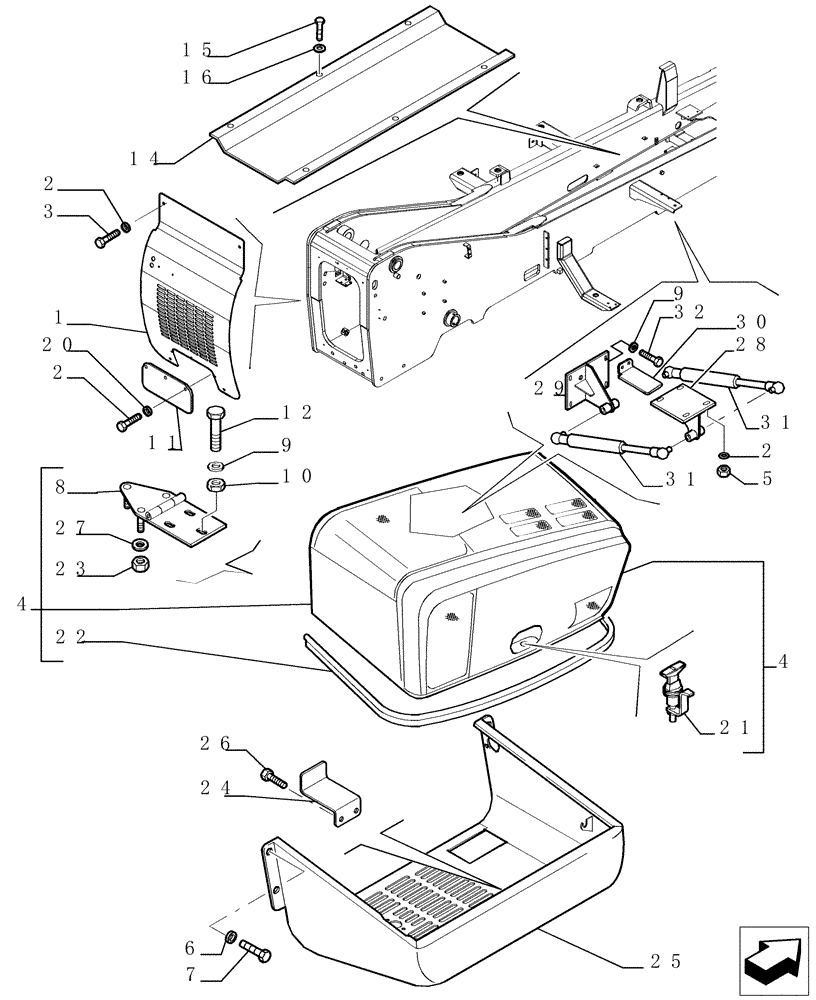

Запчасти Case TX842 (1.83.0[01]) - HOODS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87723822

GUARD

- REAR

1шт.

2

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

3

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

87518637

HOOD

- ASSY

1шт.

5

16104121

NUT,M8 x 1.25, Cl 10

4шт.

6

76036375

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

7

15840531

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

8

87723820

HINGE

2шт.

9

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

10шт.

10

12574221

NUT,M6 x 1, Cl 10

6шт.

11

87642818

GUARD

1шт.

12

13313817

SCREW,Pozidriv Oval Csk Hd, M6 x 40mm, Cl 5.8

1шт.

12

13313617

SCREW,Pozidriv Oval Hd, Csk, M6 x 30mm, Cl 5.8, Full Thd

1шт.

14

76081905

GUARD

1шт.

15

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

6шт.

16

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

20

16043331

SCREW,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

1шт.

21

76090002

HANDLE

1шт.

22

87312412

RUBBER SEAL,3410mm L

1шт.

23

16104121

NUT,M8 x 1.25, Cl 10

12шт.

24

76081947

BRACKET

8X21

1шт.

25

76094506

KIT

- BOTTOM

1шт.

26

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

27

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

12шт.

28

87353615

PLATE

1шт.

29

87353617

PLATE

1шт.

30

87591167

REPAIR KIT

1шт.

31

87591166

SPRING

2шт.

32

10902631

BOLT,Hex, M6 x 25mm, Cl 10.9

5шт.
