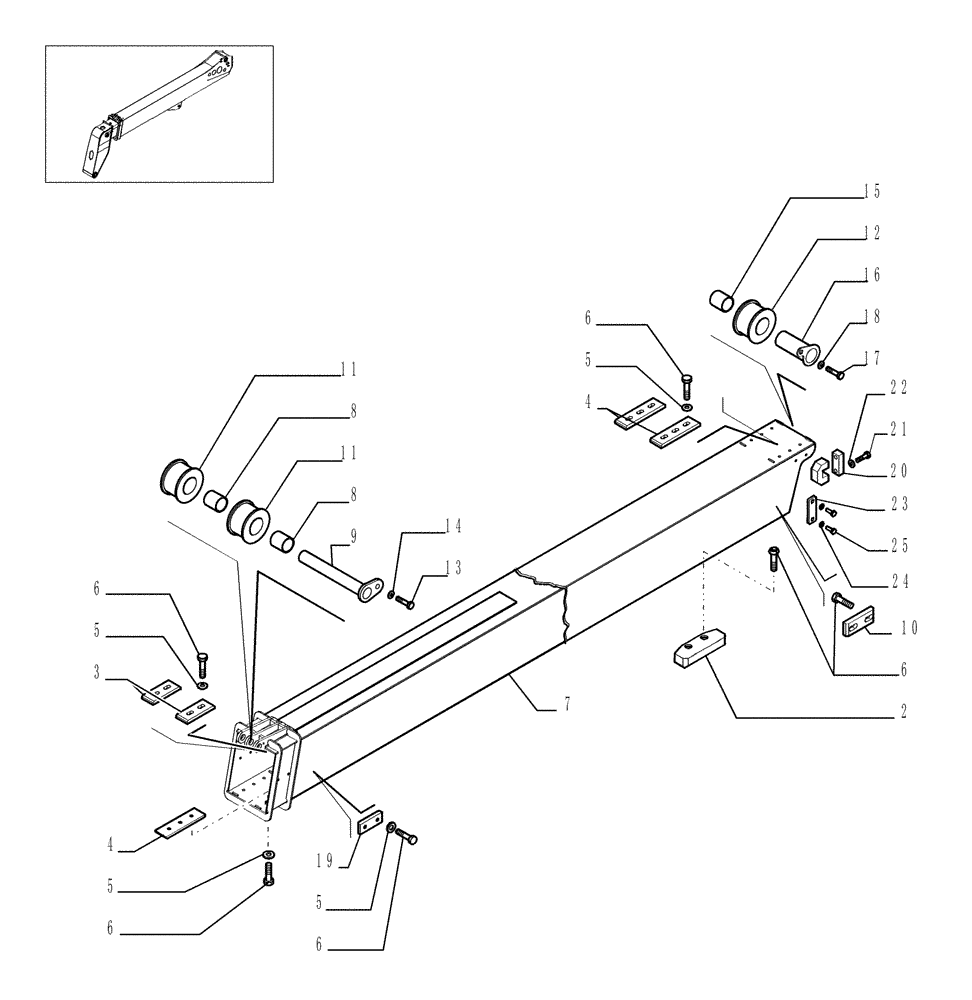

Запчасти Case TX842 (9.80092A[02]) - TELESCOPIC ARM FOR 4 FUNCTIONS (42 FEET) - OPTIONAL CODE 749027351 (83) - TELESCOPIC SINGLE ARM

2

87309494

SLIDING PAD

2шт.

3

87319408

SLIDING PAD

2шт.

4

87309503

SLIDING PAD

4шт.

6

87309683

HEX SOC SCREW,BTN HD, M12 x 1.75 x 20mm, Cl 10.9

30шт.

7

87667784

BOOM

1шт.

8

87309676

BUSHING,35mm ID x 40mm OD x 45mm L

2шт.

9

87309679

PIN,35mm OD x 156mm L

1шт.

10

87309501

SLIDING PAD

2шт.

11

87309674

PULLEY,80mm Idler Dia x 89mm OD x 45mm W

2шт.

12

87309673

PULLEY

1шт.

13

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

14

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

1шт.

15

87329015

BUSHING,40mm ID x 44mm OD x 25mm L

1шт.

16

87351854

PIN,40mm OD x 97mm L

1шт.

17

79020511

CLAMP,8mm ID, 11mm Bolt Hole, P Type

1шт.

18

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

19

87309509

SLIDING PAD

2шт.

20

87311431

CLAMP

2шт.

21

15840531

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

22

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

23

87351876

COVER PLATE

1шт.

24

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

25

10902331

SCREW,Hex, M6 x 18mm, Cl 10.9, Full Thd

2шт.
