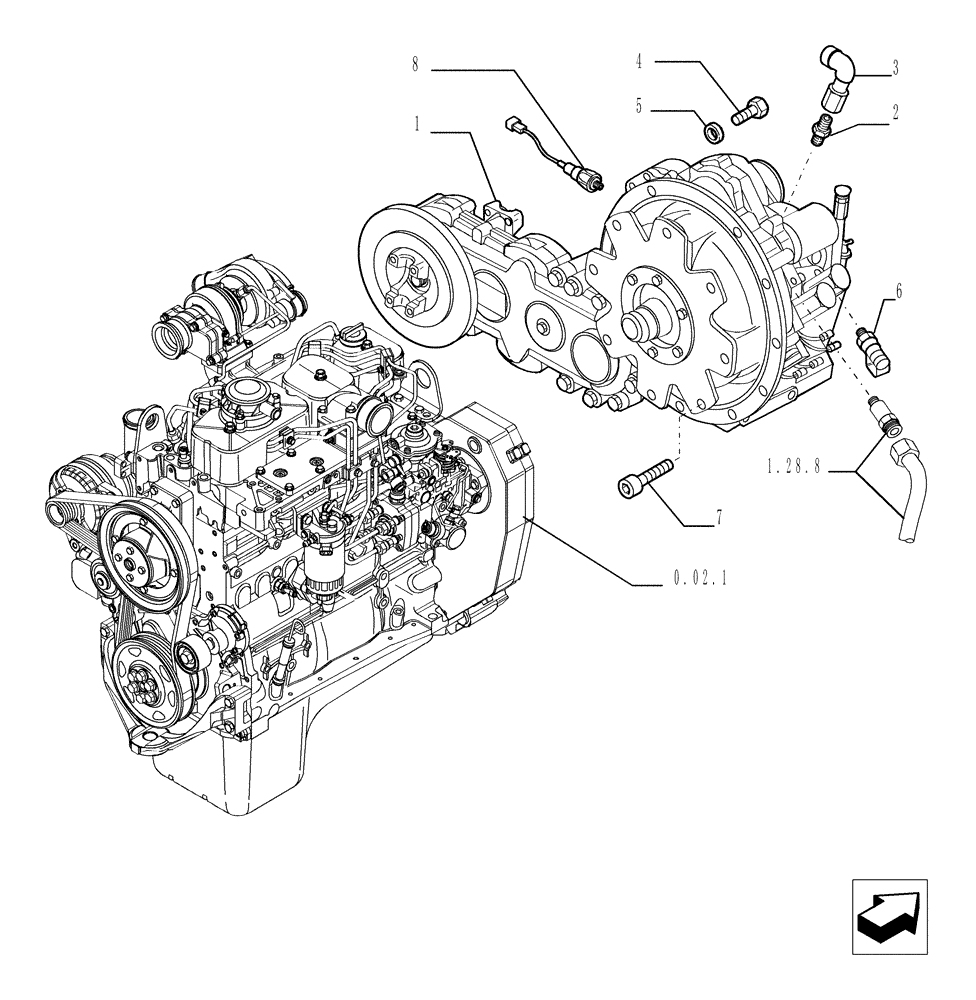

Запчасти Case TX742 (1.28.A[01]) - TRANSMISSION (21) - TRANSMISSION

1

87575366

TRANSMISSION

- ASSY SEE PAG. 2÷16

1шт.

2

85823879

FITTING

1шт.

3

76076369

90 ELBOW,7/16"-20 JIC x M10 x 1

1шт.

4

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

10шт.

5

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10шт.

6

76076056

QUICK MALE COUPLING

2шт.

7

70914787

SCREW,3/8"-24 x 1 1/2"

8шт.

8

87309167

SENSOR

1шт.
