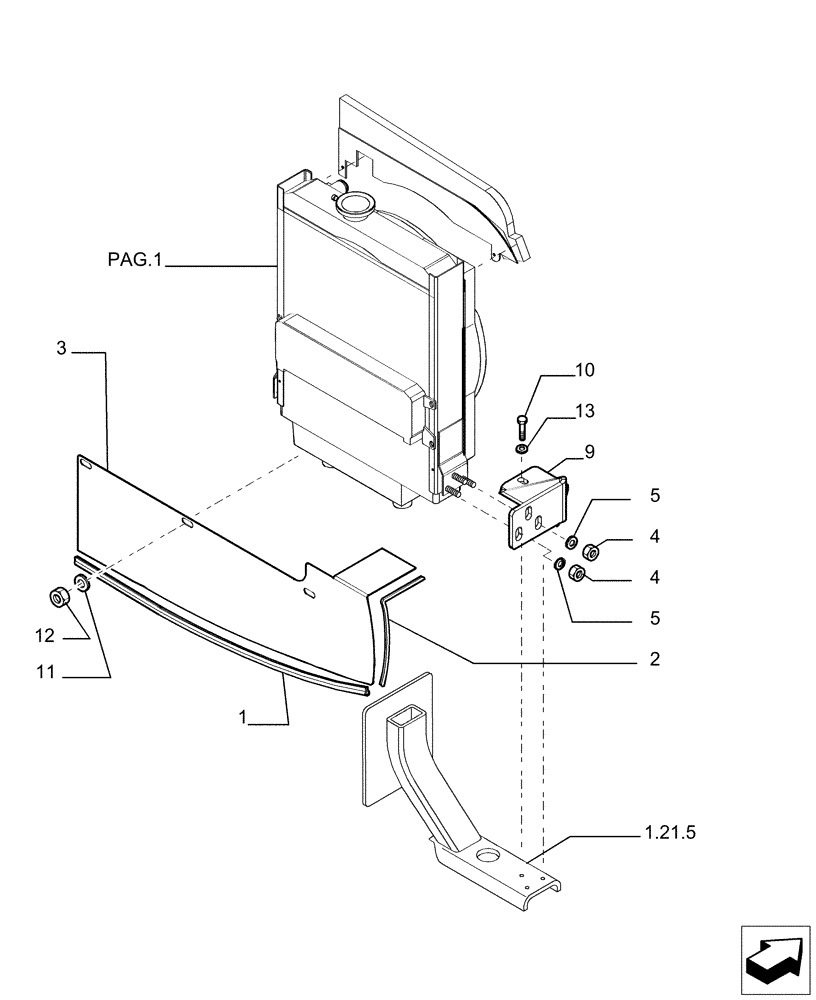

Запчасти Case TX742 (1.17.A[02]) - ENGINE COOLING - VERSION (02) (10) - ENGINE

1

76094288

SEAL

1шт.

2

76094289

SEAL

1шт.

3

76094290

GUARD

1шт.

4

11702921

NUT,M12, Cl 10

3шт.

5

14496731

WASHER,M12 x 24 x 2.5 Thk

3шт.

9

76094258

SUPPORT

1шт.

10

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

3шт.

11

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

3шт.

12

16100821

NUT,M8, Cl 10

3шт.

13

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

3шт.
