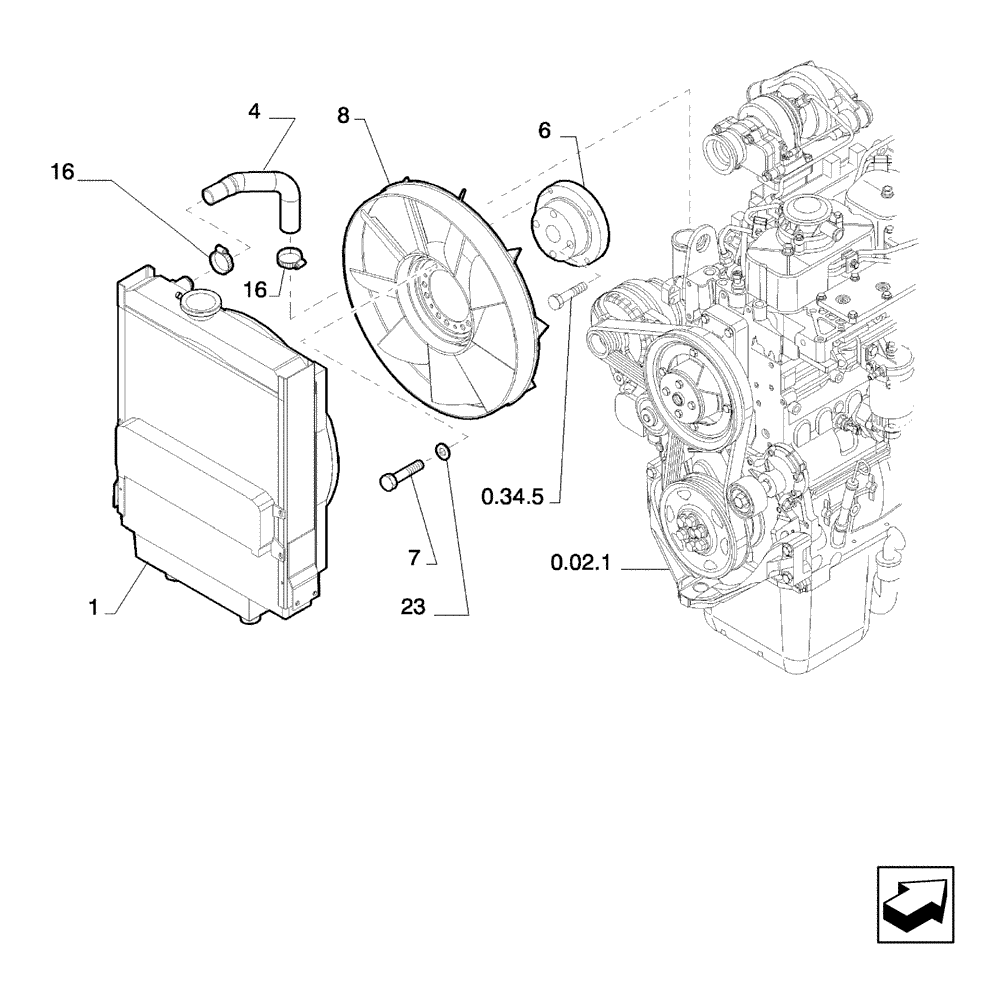

Запчасти Case TX742 (1.17.A[01]) - ENGINE COOLING - VERSION (02) (10) - ENGINE

1

87309035

RADIATOR

ASSY SEE PAG.5

1шт.

4

85821184

HOSE,38mm ID x 478.6mm L

1шт.

6

76076180

SPACER

1шт.

7

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

6шт.

8

76076145

BLOWER,7 Blades

1шт.

16

79083846

HOSE CLAMP,M40-60

6шт.

23

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

10 x 25

6шт.

36

76077832

RIGID TUBE

1шт.
