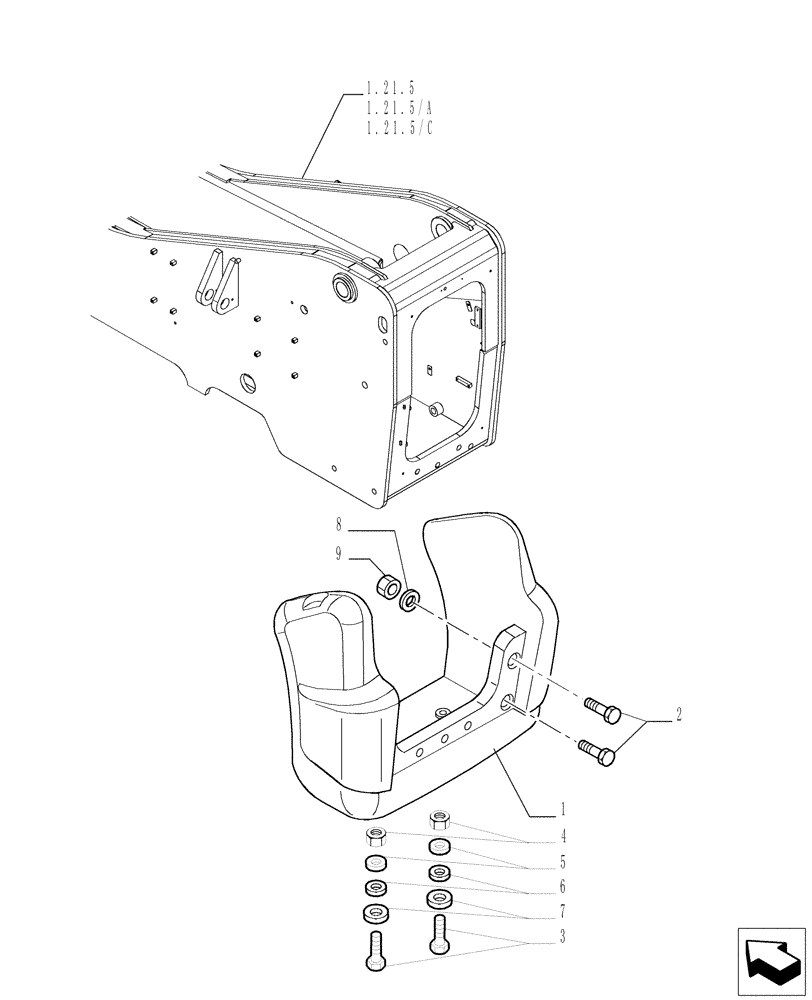

Запчасти Case TX742 (1.21.7[01]) - COUNTERWEIGHT - VERSION (02) (39) - FRAMES AND BALLASTING

1

87641292

WEIGHT

1шт.

2

86541421

BOLT,Hex, M30 x 140mm, Cl 10.9

4шт.

3

15994131

BOLT,Hex, M22 x 1.5 x 140mm, Cl 10.9

2шт.

4

86639242

NUT,M22 x 2.5, Cl 8

2шт.

5

14497231

WASHER

2шт.

6

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

7

79081332

WASHER,22.4mm ID x 50mm OD x 9mm Thk

2шт.

8

14497531

WASHER,31mm ID x 56mm OD x 4mm Thk

8шт.

9

76040496

NUT

4шт.
