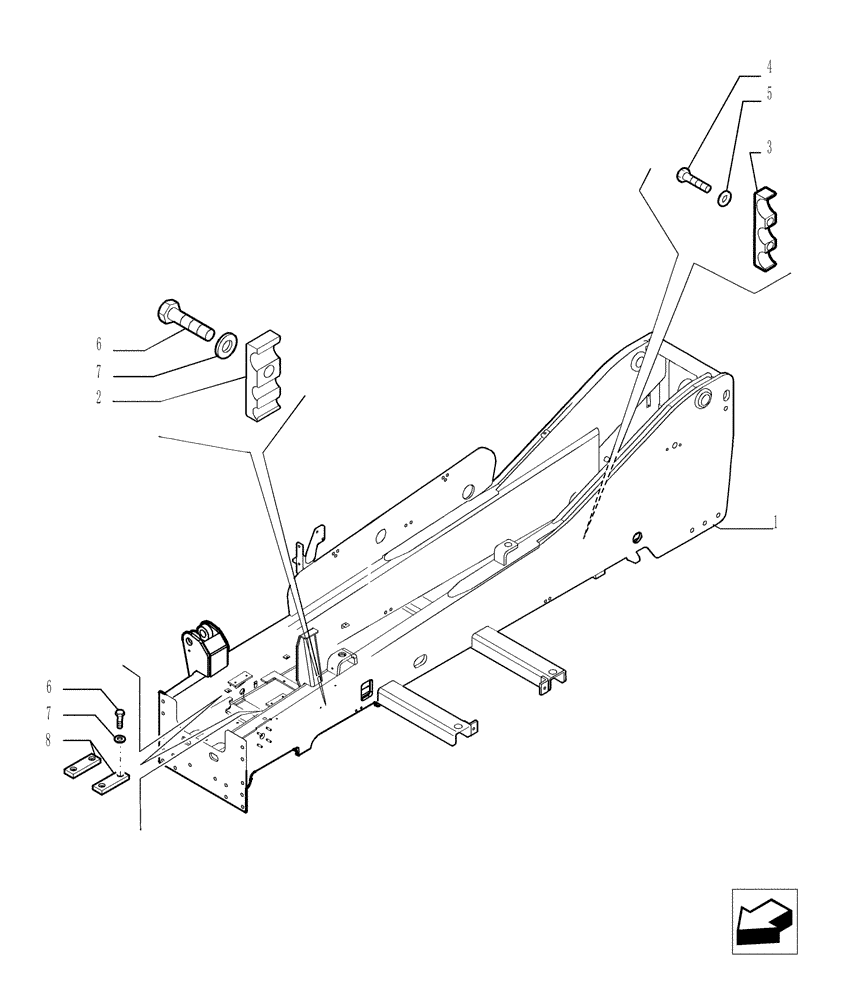

Запчасти Case TX742 (1.21.5[01]) - MAIN FRAME - VERSION (02) (39) - FRAMES AND BALLASTING

1

87692409

FRAME

1шт.

2

76080030

CLAMP

1шт.

3

76080033

CLAMP

1шт.

4

11234731

SCREW,Hex, M10 x 1.25 x 45mm, Cl 10.9

1шт.

5

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

5шт.

7

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

5шт.

8

76088078

PAD

2шт.

9

87692379

PLUG

not illustrated

2шт.
