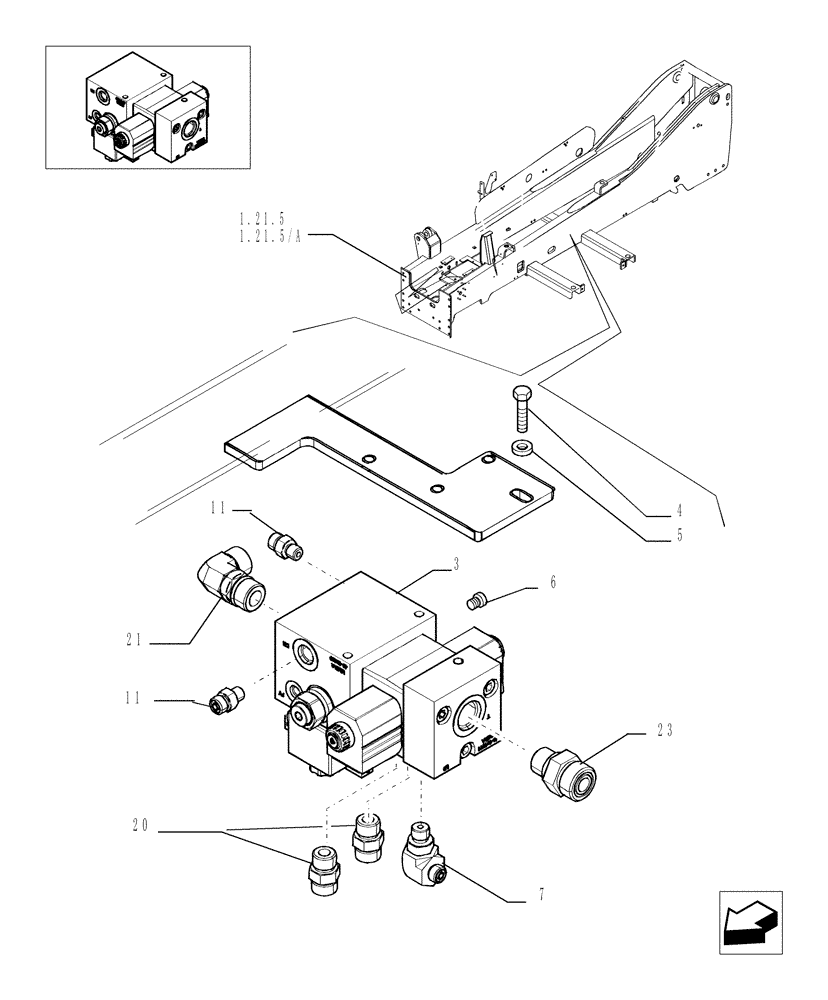

Запчасти Case TX742 (9.00825A[02]) - 3 SPOOL VALVE - OPTIONAL CODE 749001071 - VERSION (02) (35) - HYDRAULIC SYSTEMS

3

87613616

BLOCK

- ASSY

1шт.

4

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

5

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

6

85802805

PLUG,9/16" - 18

1шт.

7

85805220

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Adj, ORFS

1шт.

11

85803312

HYD CONNECTOR,7/16"-20 JIC x 9/16"-18 ORB

3шт.

20

85809049

FITTING,11/16"-16 ORFS x 3/4"-16 ORB

2шт.

21

76094245

HYD CONNECTOR

1шт.

23

85802642

HYD CONNECTOR

1-3/16"-12 ORS x 7/8"-14 SAE O-Ring

1шт.
