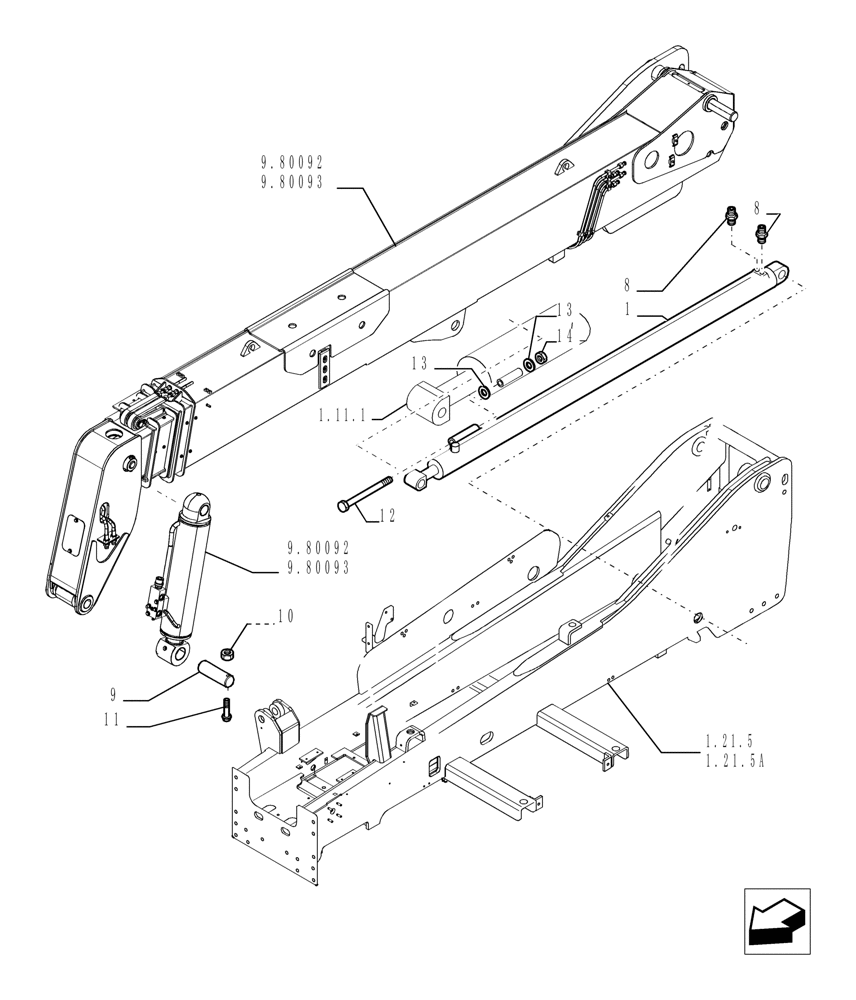

Запчасти Case TX742 (1.11.2[01]) - COMPENSATION CYLINDER - VERSION (02) (35) - HYDRAULIC SYSTEMS

1

87590558

COMPENSATOR

COMPENSATION - SEE PAG.2

1шт.

8

85809049

FITTING,11/16"-16 ORFS x 3/4"-16 ORB

2шт.

9

76076354

PIN,60mm OD x 190mm L

1шт.

10

12577521

NUT,M12 x 1.75

1шт.

11

11114631

BOLT,Hex, M12 x 120, 10.9

2шт.

12

15864331

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

13

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

14

15504021

NUT,M16 x 1.5

1шт.
