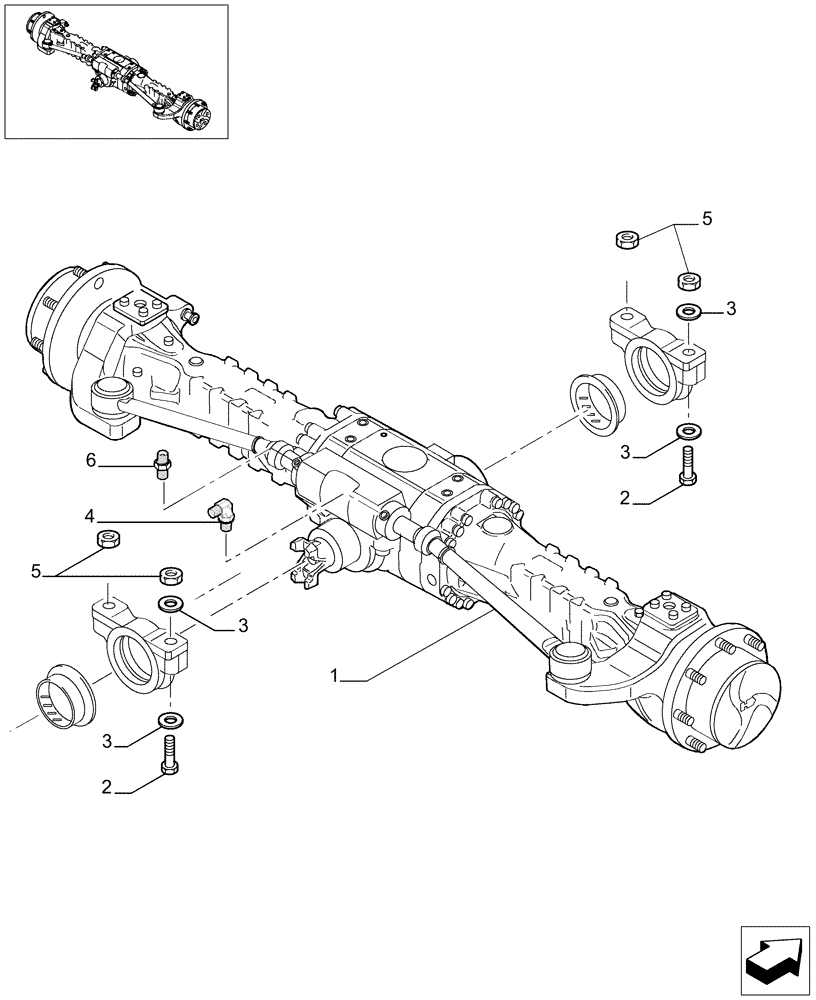

Запчасти Case TX1055 (9.00447[01]) - STD FRONT AXLE - OPTIONAL CODE 749082111 (25) - FRONT AXLE SYSTEM

1

87749554

- ASSY SEE PAG.2-7

1шт.

2

15999331

BOLT,Hex, M24 x 2 x 260mm, Cl 10.9

4шт.

3

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

20X37X3

8шт.

4

83971549

90 ELBOW,13/16"-16 ORFS x 3/4"-16 ORB

1шт.

5

12575321

NUT,M24 x 2, Cl 10

4шт.

6

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

1шт.
