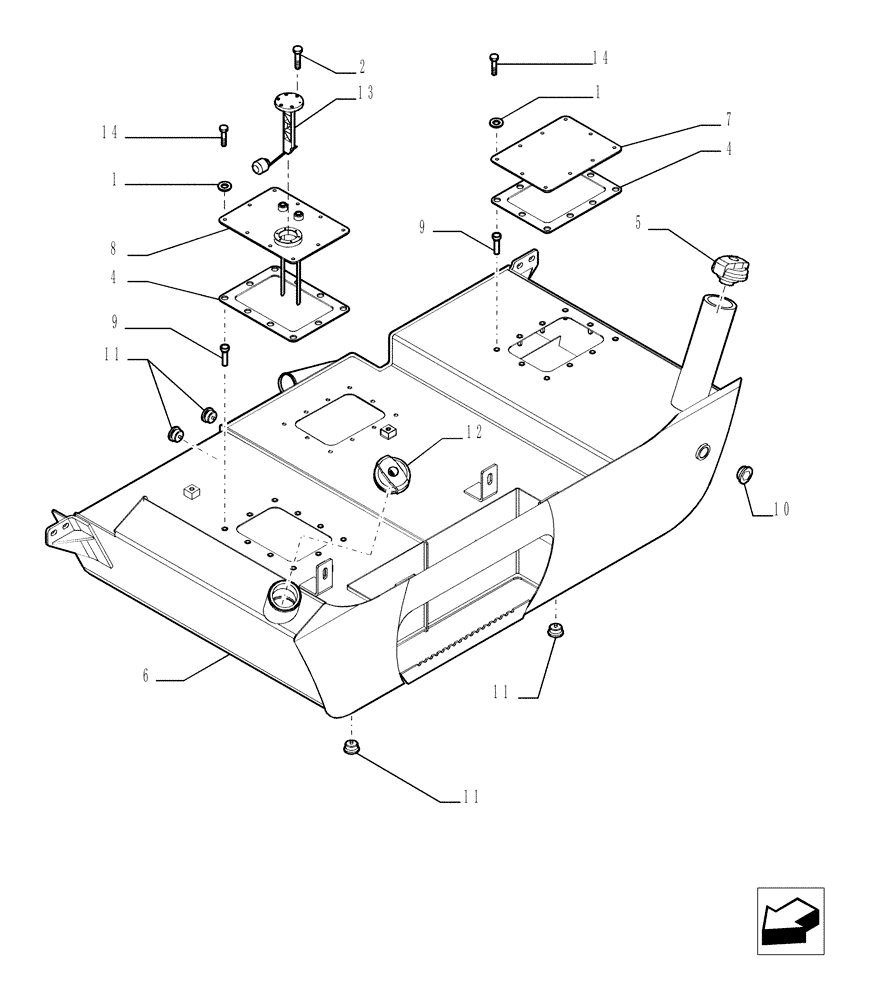

Запчасти Case TX1055 (1.82.0[02]) - FUEL AND OIL TANK - COMPONENTS (10) - ENGINE

1

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

20шт.

2

13272211

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

6шт.

3

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

- not illustrated

16шт.

4

76080332

GASKET

2шт.

5

87682866

PLUG

1шт.

6

87708129

TANK

1шт.

7

76080336

LID

1шт.

8

76091299

COVER

1шт.

9

76092764

20шт.

10

85801249

LEVEL GAUGE

1шт.

11

85801251

MAGNETIC PLUG,M33 x 2

PLUG, MAGNETIC

4шт.

12

87733550

LOCKABLE FUEL CAP

1шт.

13

85821177

LEVEL GAUGE CONTROL

1шт.

14

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

20шт.

ni

85804675

IGNITION KEY

Not Illustrated, use for Hydraulic Cap pn 87682866

1шт.
