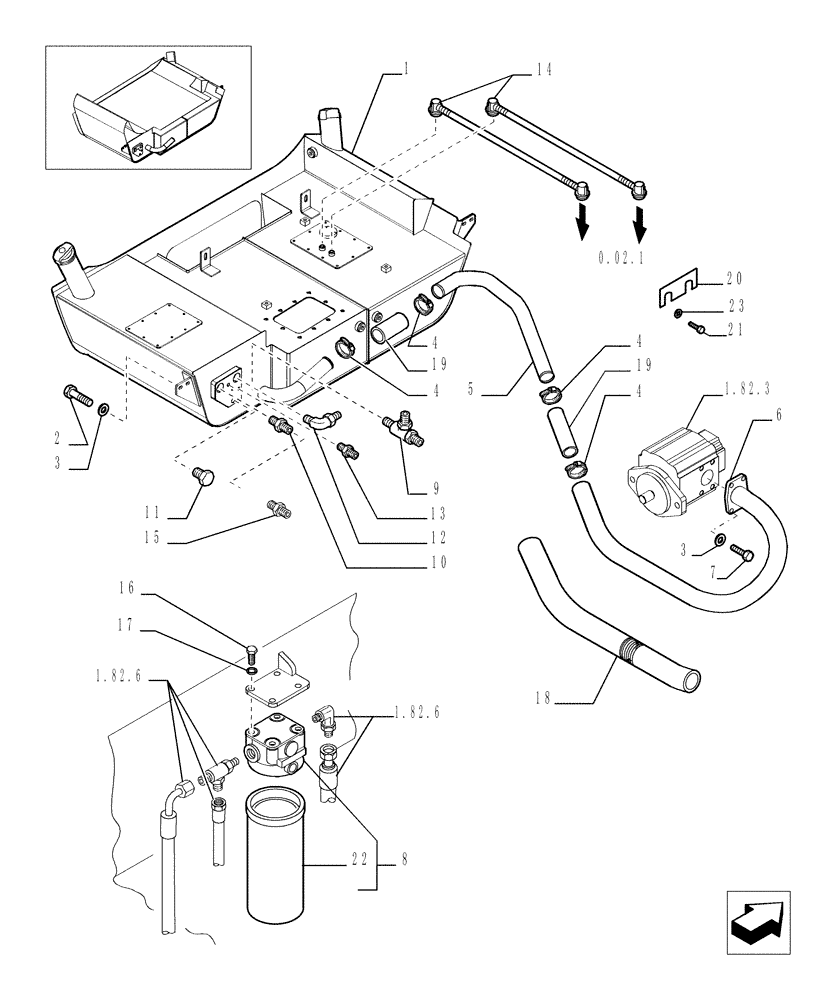

Запчасти Case TX1055 (1.82.0[01]) - FUEL AND OIL TANK (10) - ENGINE

1

87642816

- ASSY SEE PAG.2

1шт.

2

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

3

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

10шт.

4

79083848

HOSE CLAMP,60mm - 80mm, Worm Gear

4шт.

5

76092859

RIGID TUBE

1шт.

6

76092828

RIGID TUBE

1шт.

7

14422221

HEX SOC SCREW,M12 x 40mm, Cl 8.8

4шт.

8

76094129

HYDRAULIC OIL FILTER

- ASSY

1шт.

9

85802231

TEE

1шт.

10

76088188

HYD CONNECTOR

1шт.

11

76076272

PLUG

7/8

3шт.

12

79098114

HYD CONNECTOR

1шт.

13

83963376

FITTING,13/16"-16 ORFS x 7/8"-14 ORB

1шт.

14

76088474

FLEXIBLE HOSE

2шт.

15

85802960

HYD CONNECTOR

1шт.

16

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

17

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

18

76088029

RIGID TUBE

1шт.

19

76088381

HOSE,60mm ID x 180mm L

2шт.

20

87725526

SPACER

1шт.

21

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

1шт.

22

87308933

HYDRAULIC OIL FILTER

1шт.

23

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

24

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

- not illustrated

2шт.

25

16105021

LOCK NUT,M12 x 1.25, Cl 10

- not illustrated

2шт.
