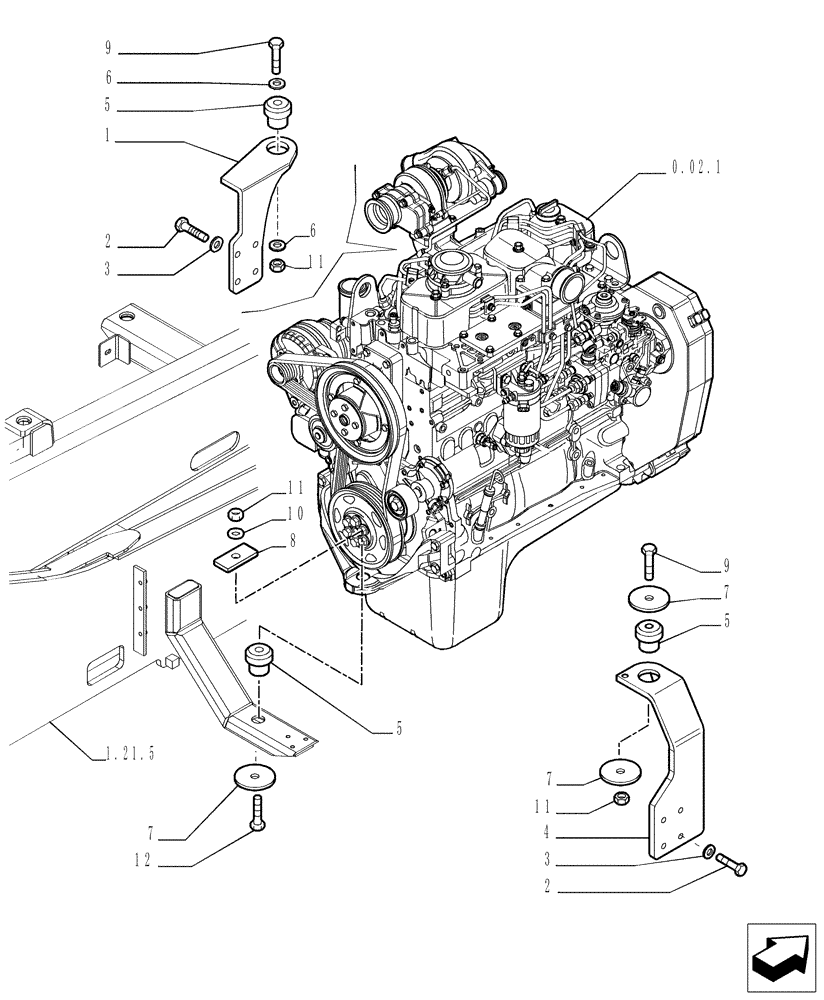

Запчасти Case TX1055 (1.26.0[01]) - ENGINE AND TRANSMISSION SUPPORT (10) - ENGINE

1

76094978

SUPPORT

- LEFT

1шт.

2

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

8шт.

3

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

8шт.

4

76094979

SUPPORT

- RIGHT

1шт.

5

85804733

ISOLATOR,60mm OD x 55.8mm L

3шт.

6

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

7

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

3шт.

8

85821417

SPACER

1шт.

9

15541431

BOLT,Hex, M12 x 1.25 x 80mm, Cl 10.9

2шт.

10

14496731

WASHER,M12 x 24 x 2.5 Thk

1шт.

11

16105021

LOCK NUT,M12 x 1.25, Cl 10

3шт.

12

15541631

BOLT,Hex, M12 x 1.25 x 100mm, Cl 10.9

1шт.
