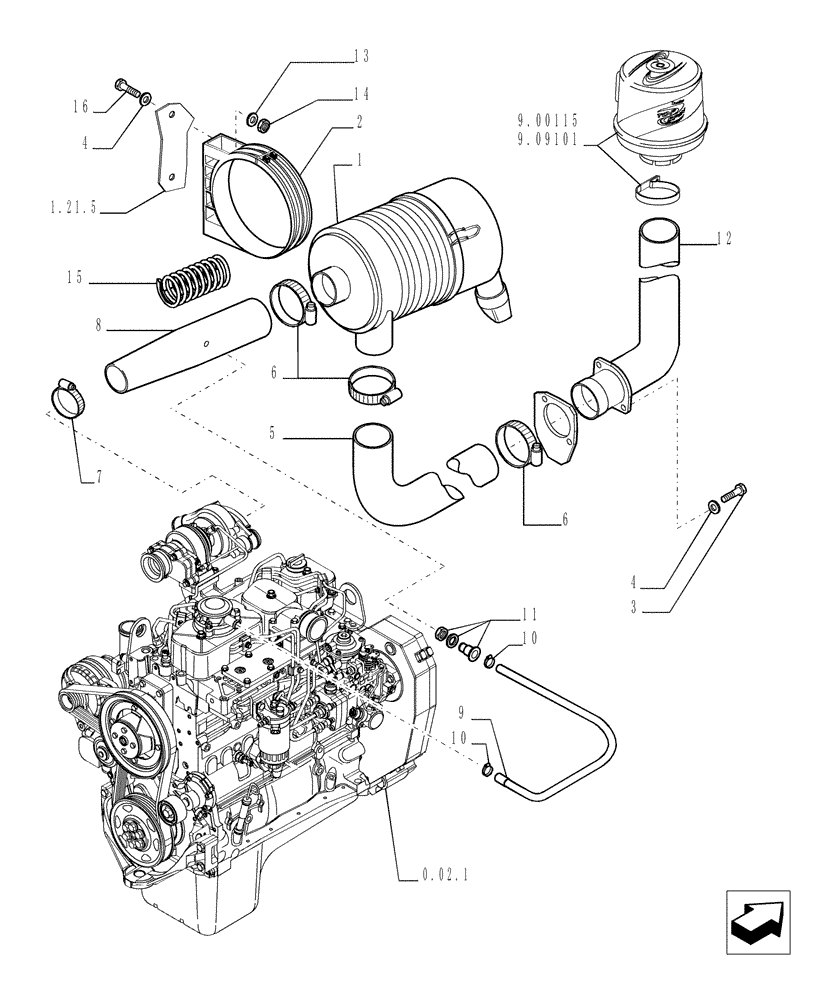

Запчасти Case TX1055 (1.19.1[01]) - AIR CLEANER (10) - ENGINE

1

5150017

FILTER ASSY

- DONALDSON - SEE PG. 2

1шт.

2

84057675

CLAMP BRACKET

- DONALDSON

1шт.

3

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

5

76092577

AIR HOSE

1шт.

6

79083852

HOSE CLAMP,100mm - 125mm, Worm Gear

100-110

3шт.

7

79083848

HOSE CLAMP,60mm - 80mm, Worm Gear

80-100

1шт.

8

76092576

HOSE

1шт.

9

76094252

SLEEVE,20mm ID x 500mm L

1шт.

10

79083842

HOSE CLAMP,M16-27

2шт.

11

85824136

FITTING

1шт.

12

76088487

RIGID TUBE

1шт.

13

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

14

16104121

NUT,M8 x 1.25, Cl 10

2шт.

15

76088390

SPRING

1шт.

16

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.
