(9.00854[02]) - CLOTH-LINED SEAT WITH MECHANICAL SUSPENSION - COMPONENTS - OPTIONAL CODE 749262011

Запчасти Case TX1055 (9.00854[02]) - CLOTH-LINED SEAT WITH MECHANICAL SUSPENSION - COMPONENTS - OPTIONAL CODE 749262011 (90) - PLATFORM, CAB, BODYWORK AND DECALS

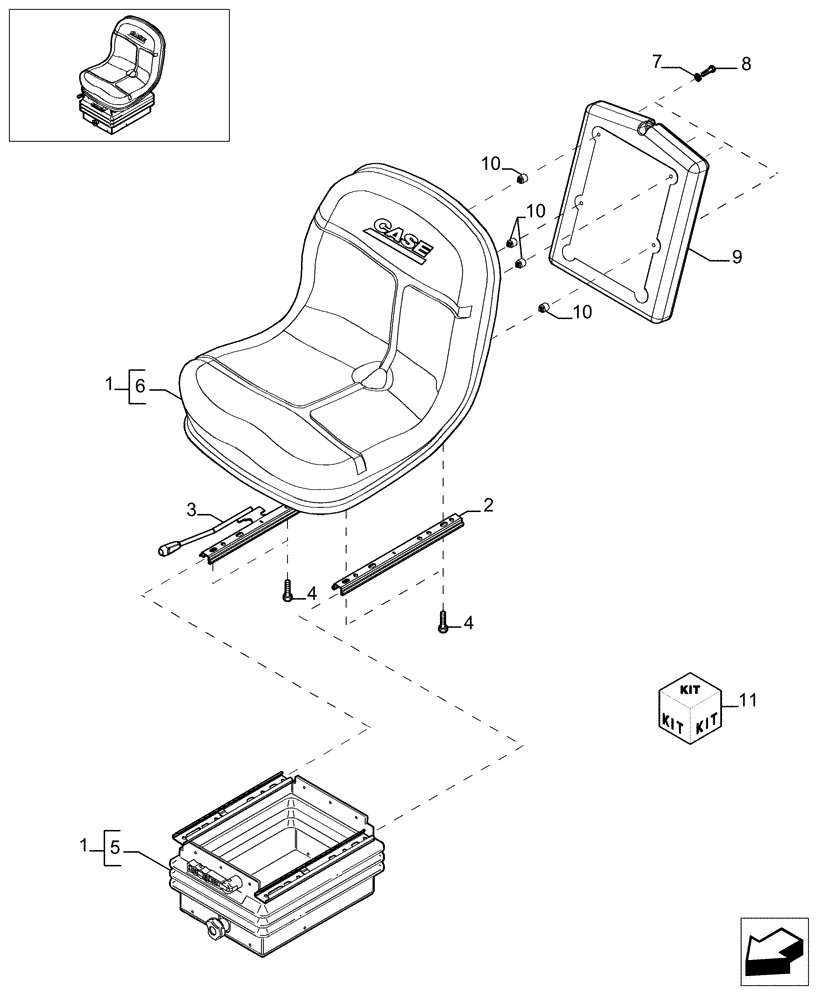

Схема запчастей Case TX1055 - (9.00854[02]) - CLOTH-LINED SEAT WITH MECHANICAL SUSPENSION - COMPONENTS - OPTIONAL CODE 749262011 (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
3
1
2
4
8
5
10
9
4
11
6
7
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87753778

SEAT

- ASSY

1шт.

2

87753780

GUIDE

1шт.

3

87753781

GUIDE

1шт.

4

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

5

87752449

SUSPENSION

1шт.

6

87753789

SEAT

1шт.

7

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

4шт.

- KIT 87753786

1шт.

8

13272417

SCREW,Pozidriv Pan Hd, M4 x 20mm, Cl 5.8, Full Thd

4шт.

- KIT 87753786

1шт.

9

87753787

BRIEF CASE

1шт.

- KIT 87753786

1шт.

10

87753788

SPACER

4шт.

- KIT 87753786

1шт.

11

87753786

KIT

- KIT

1шт.
