(9.00854[01]) - CLOTH-LINED SEAT WITH MECHANICAL SUSPENSION - COMPONENTS - OPTIONAL CODE 749262011

Запчасти Case TX1055 (9.00854[01]) - CLOTH-LINED SEAT WITH MECHANICAL SUSPENSION - COMPONENTS - OPTIONAL CODE 749262011 (90) - PLATFORM, CAB, BODYWORK AND DECALS

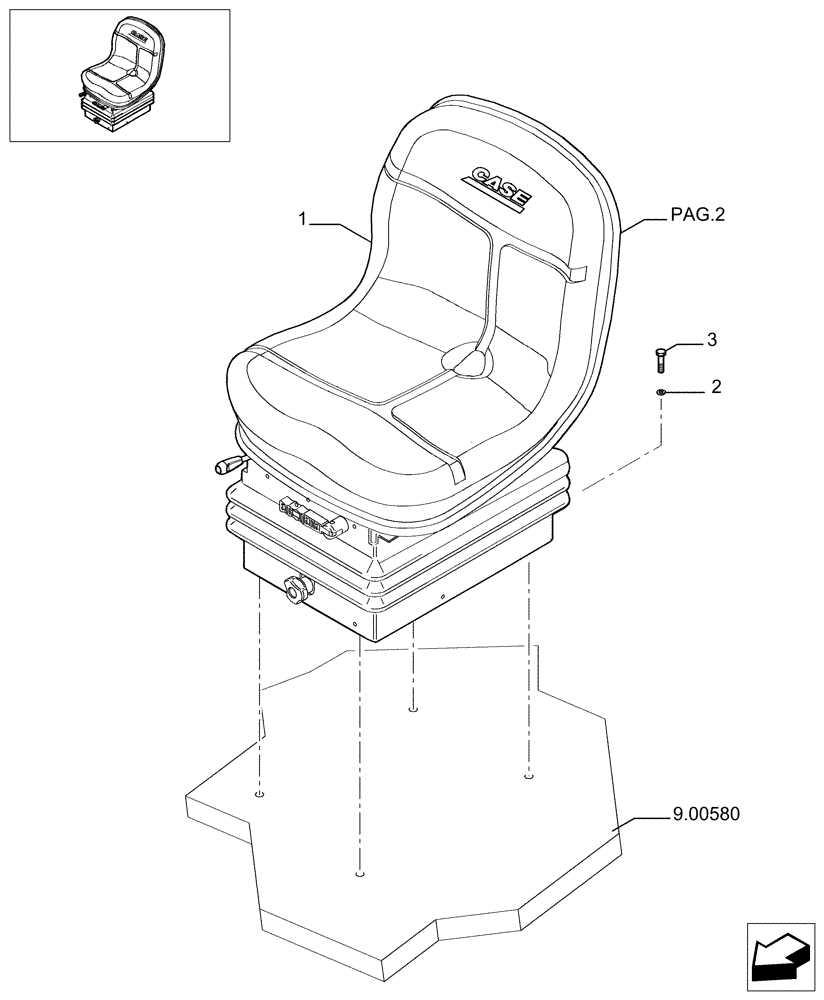

Схема запчастей Case TX1055 - (9.00854[01]) - CLOTH-LINED SEAT WITH MECHANICAL SUSPENSION - COMPONENTS - OPTIONAL CODE 749262011 (90) - PLATFORM, CAB, BODYWORK AND DECALS
9.00580
3
1
pag.2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87752468

SEAT

- ASSY SEE PAG.2

1шт.

2

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

3

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

4шт.

Выбрано товаров: 3
