(9.00853[01]) - CLOTH-LINED SEAT WITHOUT MECHANICAL SUSPENSION - OPTIONAL CODE 749261011

Запчасти Case TX1055 (9.00853[01]) - CLOTH-LINED SEAT WITHOUT MECHANICAL SUSPENSION - OPTIONAL CODE 749261011 (90) - PLATFORM, CAB, BODYWORK AND DECALS

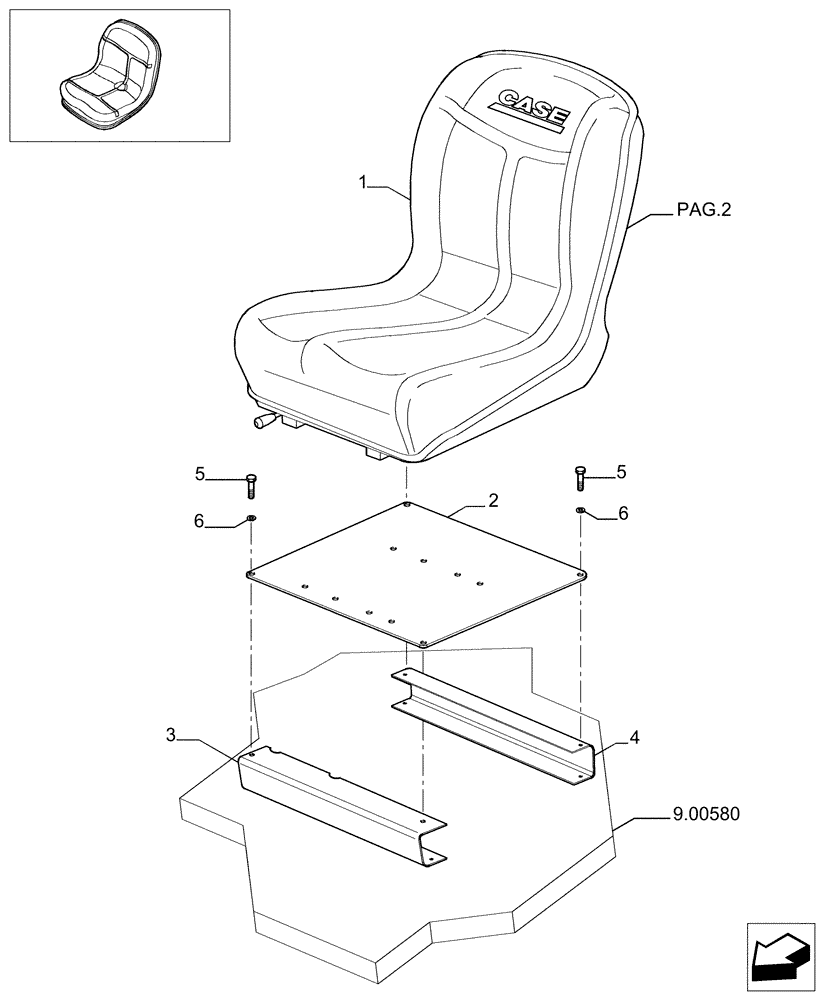

Схема запчастей Case TX1055 - (9.00853[01]) - CLOTH-LINED SEAT WITHOUT MECHANICAL SUSPENSION - OPTIONAL CODE 749261011 (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
5
1
pag.2
3
2
5
9.00580
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87752466

SEAT

- ASSY SEE PAG.2

1шт.

2

87378299

PLATE

1шт.

3

87378301

SEAT SUPPORT

1шт.

4

87378302

SEAT SUPPORT

1шт.

5

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

4шт.

6

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

Выбрано товаров: 6
