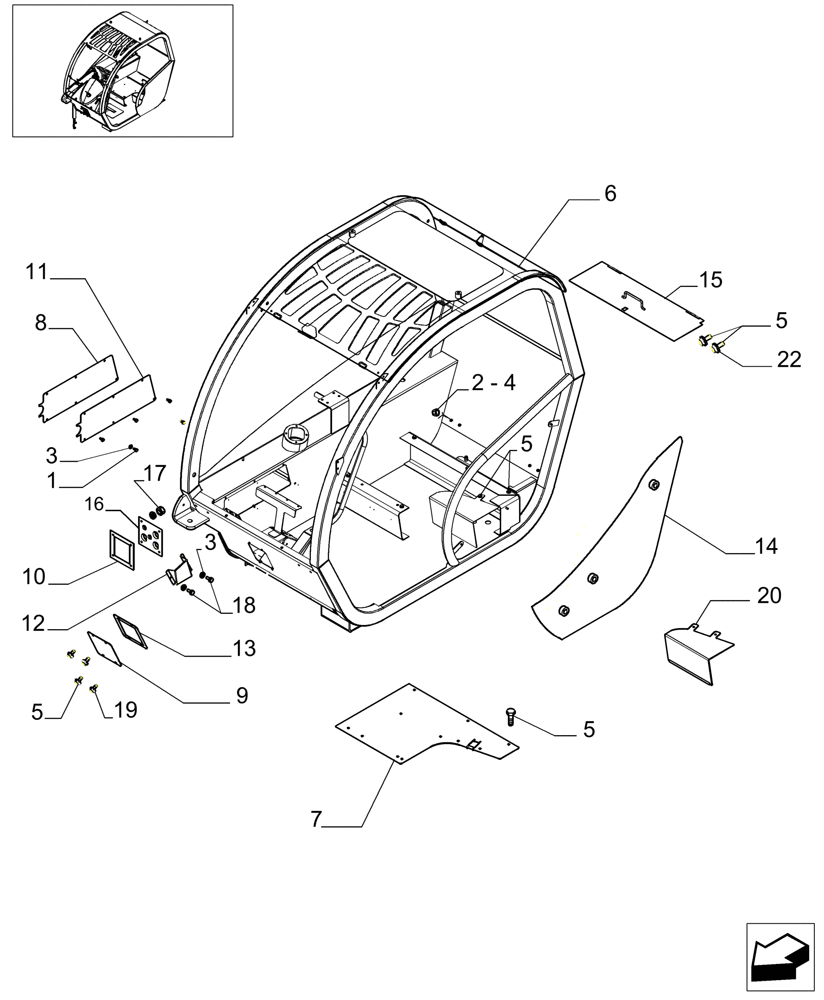

Запчасти Case TX1055 (9.00580[06]) - ROPS CANOPY - COMPONENTS - OPTIONAL CODE 749260111 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

10902231

SCREW,Hex, M6 x 16mm, Cl 10.9

14шт.

2

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

9шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

20шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

10шт.

6

87641294

CANOPY KIT

1шт.

7

87671380

SUPPORT

1шт.

8

87372288

PLATE

1шт.

9

87372307

PLATE

1шт.

10

87373674

GASKET

1шт.

11

87373678

GASKET

1шт.

12

87392957

COVER

1шт.

13

87392959

GASKET

1шт.

14

87374945

SUPPORT

1шт.

15

87397237

COVER

1шт.

16

87372297

1шт.

17

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

18

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

19

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

11шт.

20

87599458

SUPPORT

1шт.

21

87651567

- not illustrated

4шт.

22

4227139

CAP,M8

Not Illustrated

4шт.

23

76092865

PLUG

- not illustrated

5шт.

24

87665832

BULKHEAD

- not illustrated

1шт.
