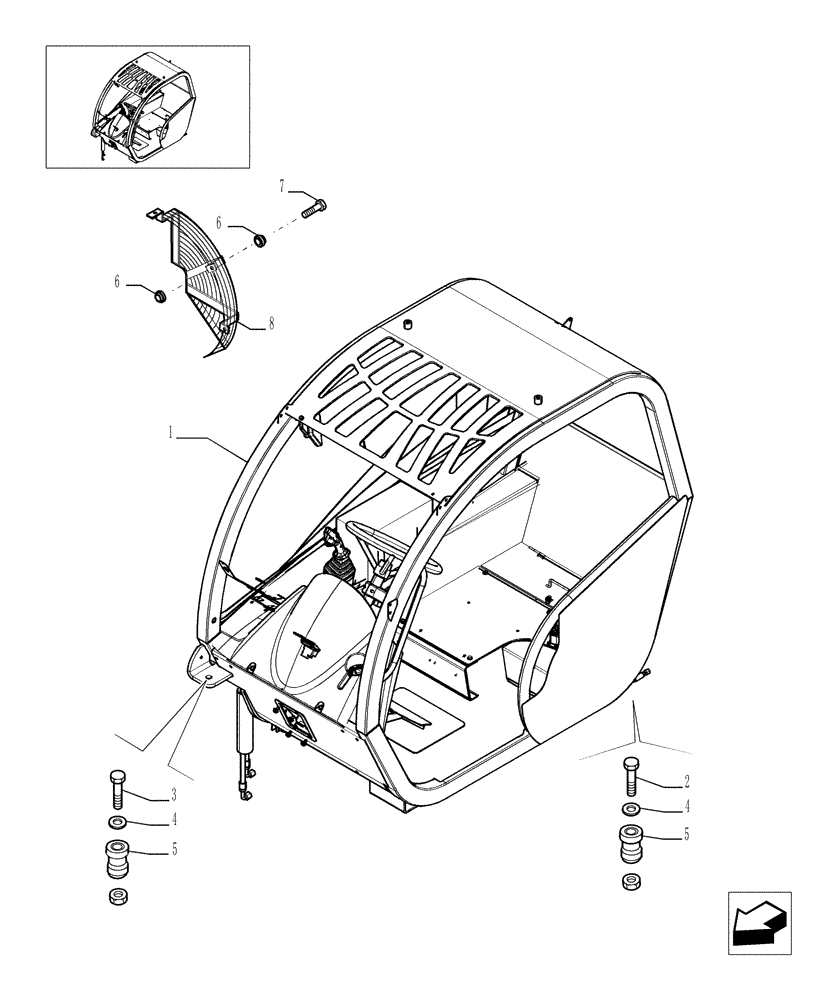

Запчасти Case TX1055 (9.00580[01]) - ROPS CANOPY NH - E.P. - STRUCTURE - OPTIONAL CODE 749260111 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87692426

- ASSY SEE PAG.2 TO 18

1шт.

2

16218834

SCREW,Hex, M16 x 130mm

2шт.

3

15981631

BOLT,Hex, M16 x 1.5 x 100mm, Cl 10.9

2шт.

4

76090142

WASHER,M17 x 50 x 5 Thk

4шт.

5

85802979

DAMPER

4шт.

6

84223579

BLOCK

- SILENT BLOCK

6шт.

7

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

8

87738620

GUARD

1шт.
