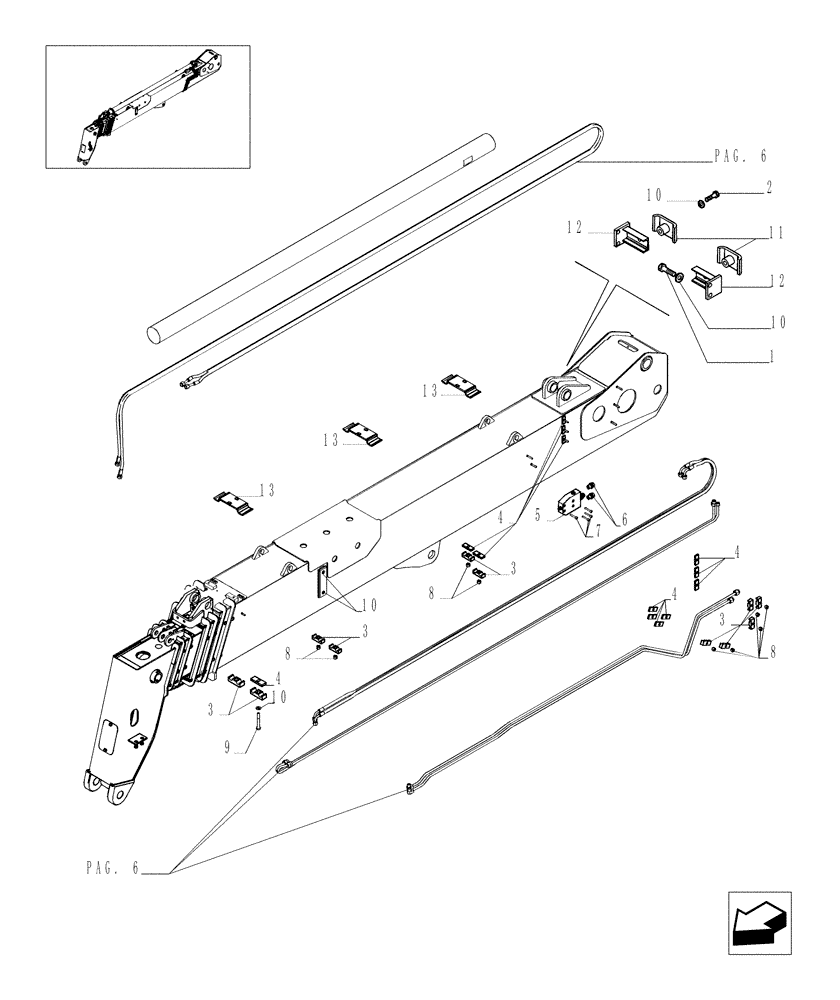

Запчасти Case TX1055 (9.80092B[05]) - TELESCOPIC ARM FOR 3 FUNCTIONS (ARM 55) - OPTIONAL CODE 749060351 (83) - TELESCOPIC SINGLE ARM

1

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

4шт.

2

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

3

71491169

CLAMP

11шт.

4

87317502

SPACER

16шт.

5

84219581

VALVE

1шт.

5a

84219579

PLUG

1шт.

5b

84207914

GASKET KIT

1шт.

6

83963000

FITTING,1" - 14 ORFS x 7/8" - 14 ORB

2шт.

7

14306831

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 10.9, Full Thd

4шт.

8

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

9шт.

9

16044431

SCREW,Hex, M8 x 60mm, Cl 10.9

2шт.

10

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

11

87357331

2шт.

12

87357330

2шт.

13

87357333

3шт.
