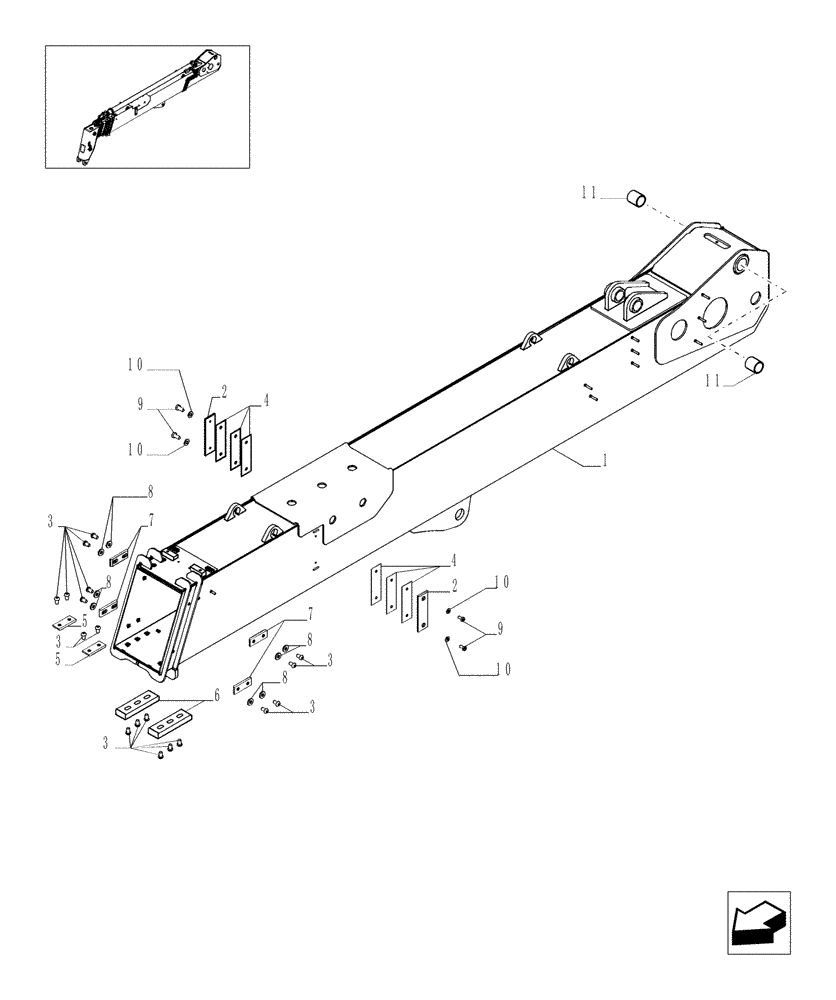

Запчасти Case TX1055 (9.80092A[01]) - TELESCOPIC ARM FOR 4 FUNCTIONS (ARM 55) - OPTIONAL CODE 749027251 (83) - TELESCOPIC SINGLE ARM

1

87670427

1шт.

2

76088106

SLIDING PAD

2шт.

3

87309683

HEX SOC SCREW,BTN HD, M12 x 1.75 x 20mm, Cl 10.9

18шт.

4

76090144

SHIM

6шт.

5

87309509

SLIDING PAD

2шт.

6

87309499

SLIDING PAD

2шт.

7

87323481

SLIDING PAD

4шт.

8

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

8шт.

9

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

10

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

85821195

BUSHING,70mm ID x 75mm OD x 80mm L

2шт.
