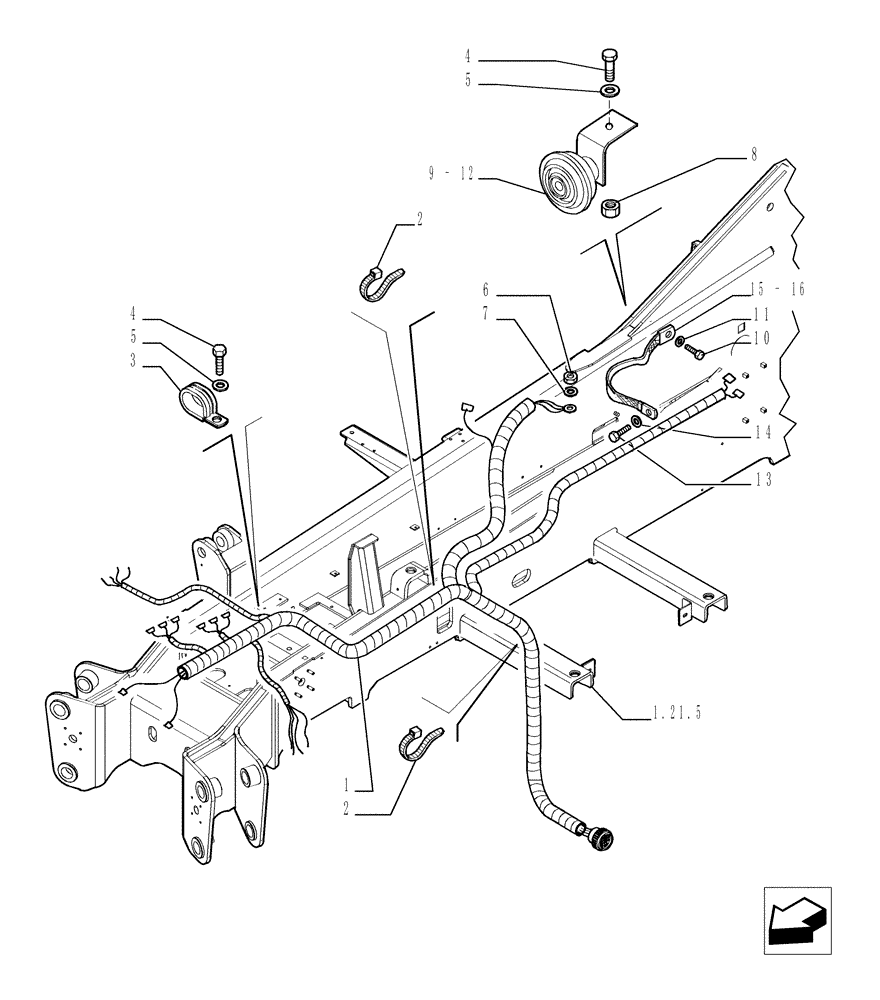

Запчасти Case TX1055 (1.75.2[01]) - ELECTRIC COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87519496

HARNESS

1шт.

2

4982514

CABLE TIE,188mm L

CABLE STRAP

1шт.

3

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

4

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

5

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

6

11701721

NUT,M10, Cl 10

1шт.

7

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

8

16100821

NUT,M8, Cl 10

1шт.

9

76089553

HORN

1шт.

10

15970531

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

13

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

11

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

12

76076493

HORN

1шт.

14

14496731

WASHER,M12 x 24 x 2.5 Thk

1шт.

15

76089558

ELECTRIC CABLE

1шт.

16

76089559

ELECTRIC CABLE

1шт.
