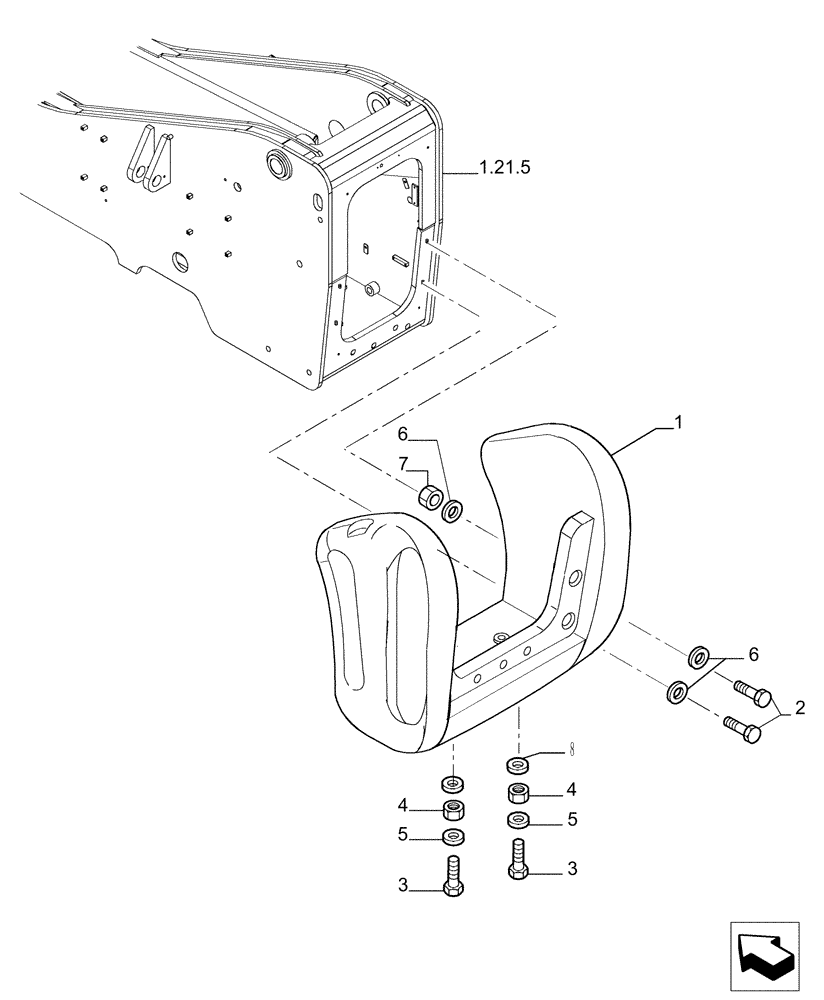

Запчасти Case TX1055 (1.21.7[01]) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

1

87609760

CASE POWER

1шт.

2

86541421

BOLT,Hex, M30 x 140mm, Cl 10.9

4шт.

3

15994131

BOLT,Hex, M22 x 1.5 x 140mm, Cl 10.9

2шт.

4

86639242

NUT,M22 x 2.5, Cl 8

2шт.

5

14497231

WASHER

2шт.

6

14497531

WASHER,31mm ID x 56mm OD x 4mm Thk

8шт.

7

76040496

NUT

4шт.

8

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.
