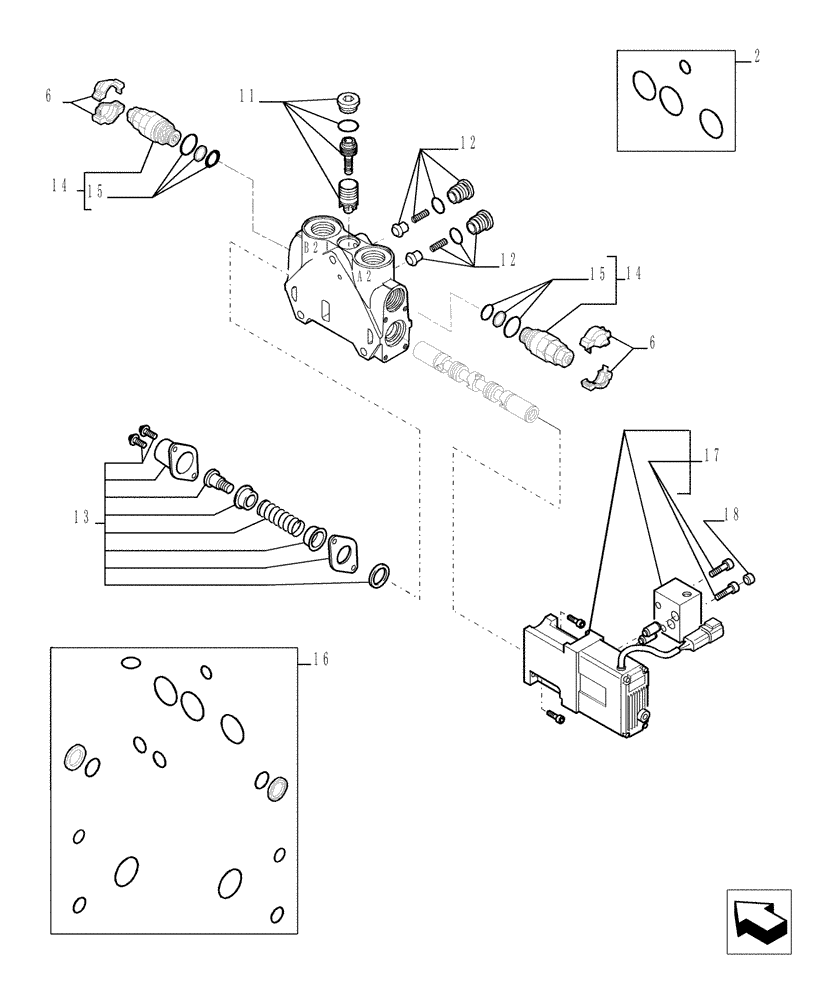

Запчасти Case TX1055 (9.00825B[04]) - 3 SPOOL VALVE - COMPONENTS- OPTIONAL CODE 749001091 (35) - HYDRAULIC SYSTEMS

2-17

87667789

BODY

ASSY - SECTION FORK

1шт.

2

85825473

SEAL KIT

1шт.

6

85811934

COVER,Half, Orange

- In Alternative

2шт.

6

85811935

COVER,Half, Blue

- In Alternative

2шт.

11

85819378

KIT

1шт.

12

85811938

KIT,Check Valve

1шт.

13

87572318

SPOOL

1шт.

14

87572321

VALVE PRESSURE RELIE

1шт.

15

85811933

SEAL KIT,Secondary Valve

1шт.

16

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

17

87572324

MODULE

KIT EMS

1шт.

18

87572325

FILTER

2шт.
