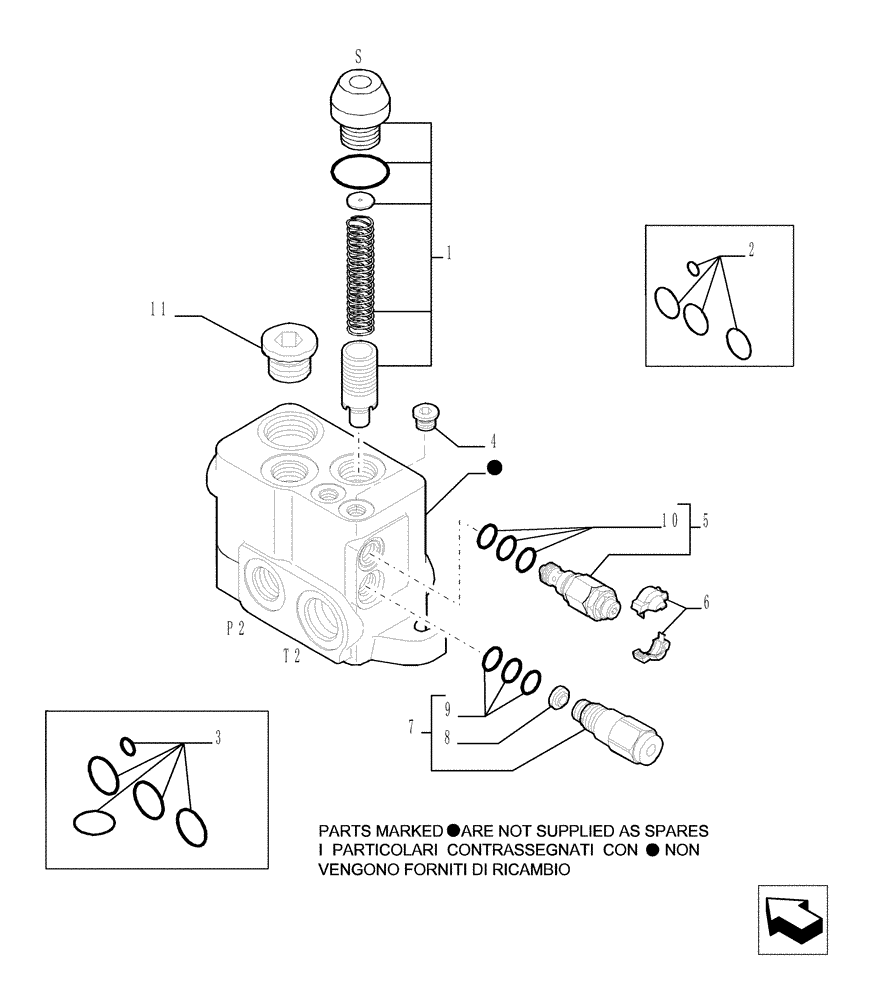

Запчасти Case TX1055 (9.00825A[03]) - 4 SPOOL VALVE - COMPONENTS- OPTIONAL CODE 749002141 (35) - HYDRAULIC SYSTEMS

1-11

76095634

HYD VALVE SECTION

- ASSY SECTION INLET

1шт.

1

85820129

KIT

1шт.

2

85825473

SEAL KIT

1шт.

3

85825477

SEAL KIT

1шт.

4

85811923

PLUG,9/16" UNF

1шт.

5

85811946

VALVE PRESSURE RELIE

1шт.

6

85811934

COVER,Half, Orange

- In Alternative

1шт.

6

85811935

COVER,Half, Blue

- In Alternative

1шт.

7

85820128

REGULATOR

1шт.

8

85817669

FILTER

1шт.

9

85821235

SEAL KIT

Seal, Flow Regulator

1шт.

10

85821236

SEAL KIT

Seal, LS Pressure Relief

1шт.

11

85811922

PLUG,1'5/16-UNF 2A

1шт.
