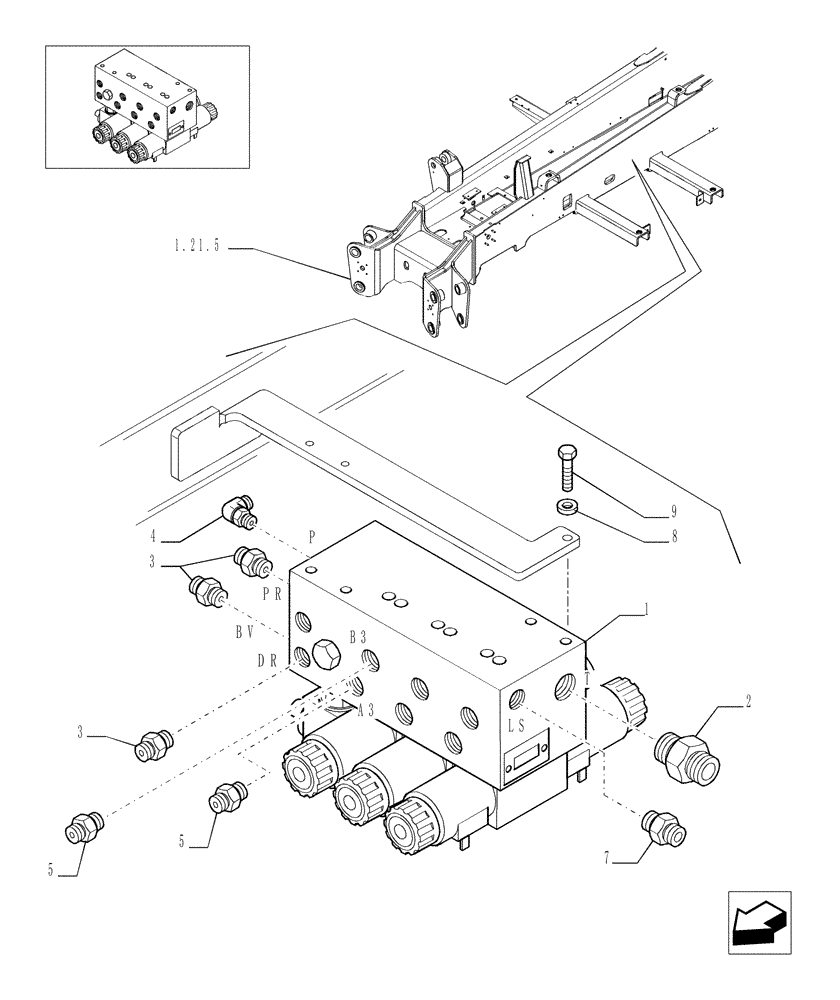

Запчасти Case TX1055 (9.00825A[02]) - 4 SPOOL VALVE - OPTIONAL CODE 749002141 (35) - HYDRAULIC SYSTEMS

1

76092746

HYDRAULIC VALVE

1шт.

2

85802642

HYD CONNECTOR

1шт.

3

85803312

HYD CONNECTOR,7/16"-20 JIC x 9/16"-18 ORB

3шт.

4

76094245

HYD CONNECTOR

1шт.

5

85809049

FITTING,11/16"-16 ORFS x 3/4"-16 ORB

2шт.

6

9625546

CAP,11/16" - 16 ORFS

- not illustrated

2шт.

7

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

1шт.

8

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

9

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.
