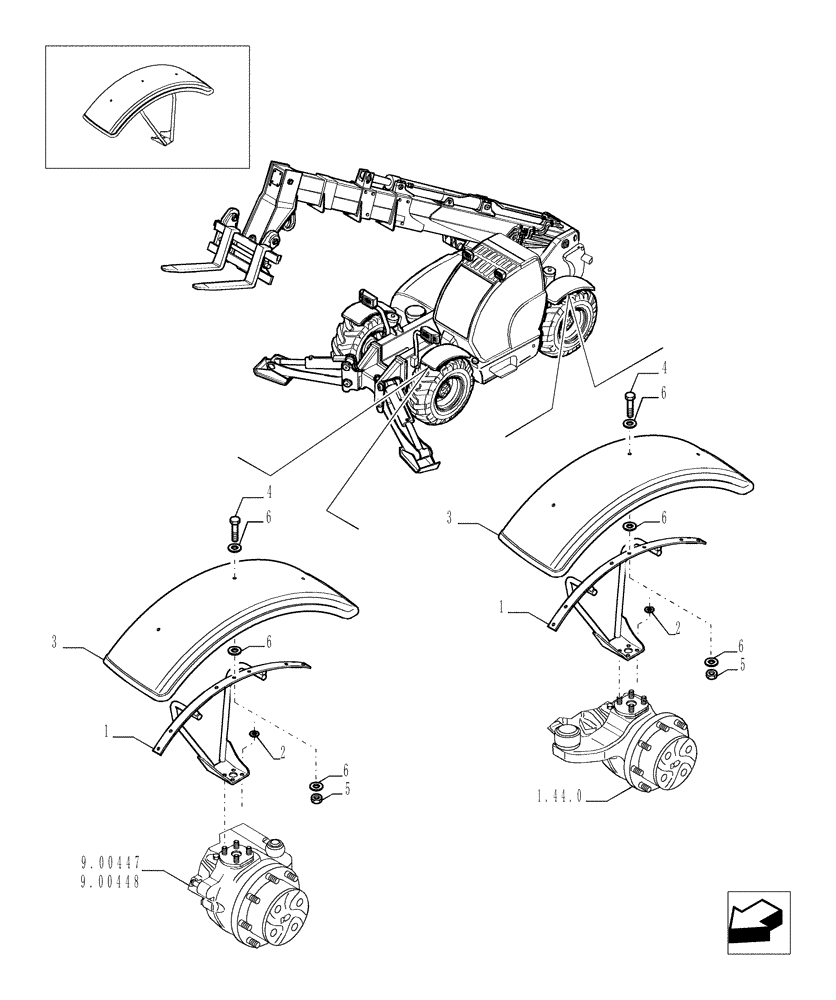

Запчасти Case TX1055 (9.00343[01]) - FENDERS - OPTIONAL CODE 749269021 (35) - HYDRAULIC SYSTEMS

1

87718810

SUPPORT

4шт.

2

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

32шт.

3

76091494

REAR FENDER

4шт.

4

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

16104121

NUT,M8 x 1.25, Cl 10

12шт.

6

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

36шт.
