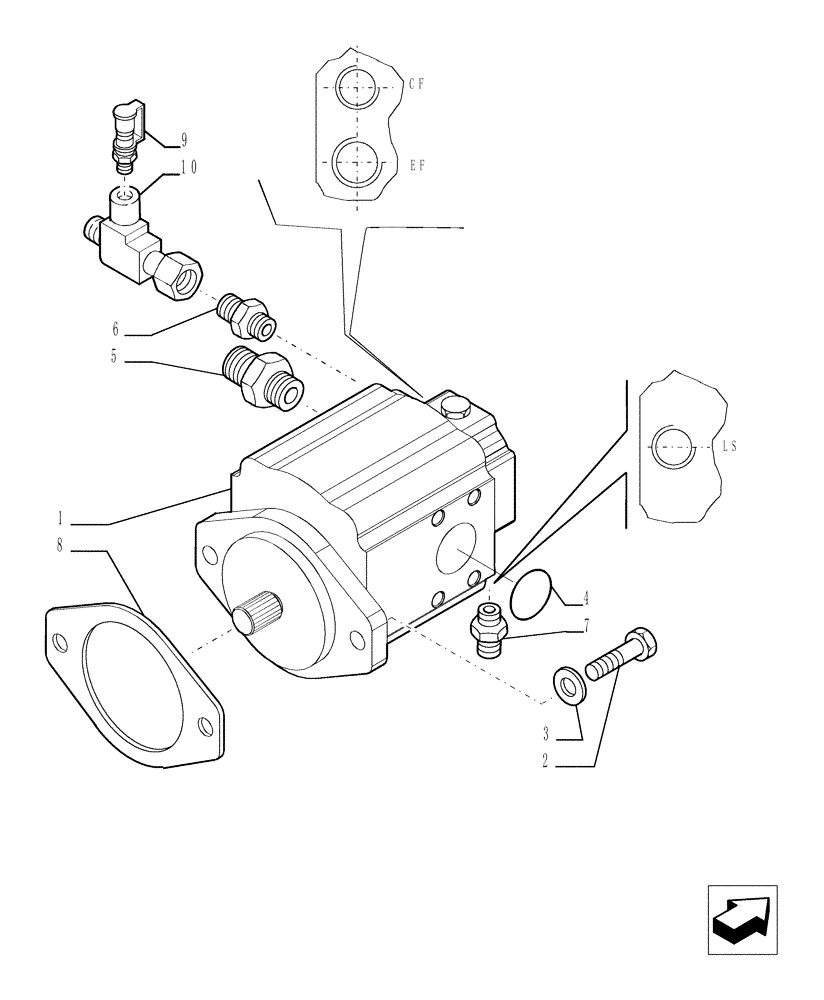

Запчасти Case TX1055 (1.82.3[01]) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

85823855

HYDRAULIC PUMP

ASSY - SEE PAG.2

1шт.

2

70920583

SCREW,1/2"-13 x 1 1/2"

2шт.

3

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

2шт.

4

14464381

O-RING,47.22mm ID x 2.137" OD x 3.53mm

(M47.22 ID x 3.53 Thk)

1шт.

5

85803486

FITTING,1 7/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

6

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

1шт.

7

85802640

HYD CONNECTOR,11/16-16 ORS x 7/16-20 UNF-2A

1шт.

8

76042413

GASKET,0.5mm Thk

1шт.

9

76076056

QUICK MALE COUPLING

1шт.

10

85823875

TEE,13/16"-16 ORFS Male x 13/16"-16 ORFS Fem x 3/8"-24 Fem

1шт.
