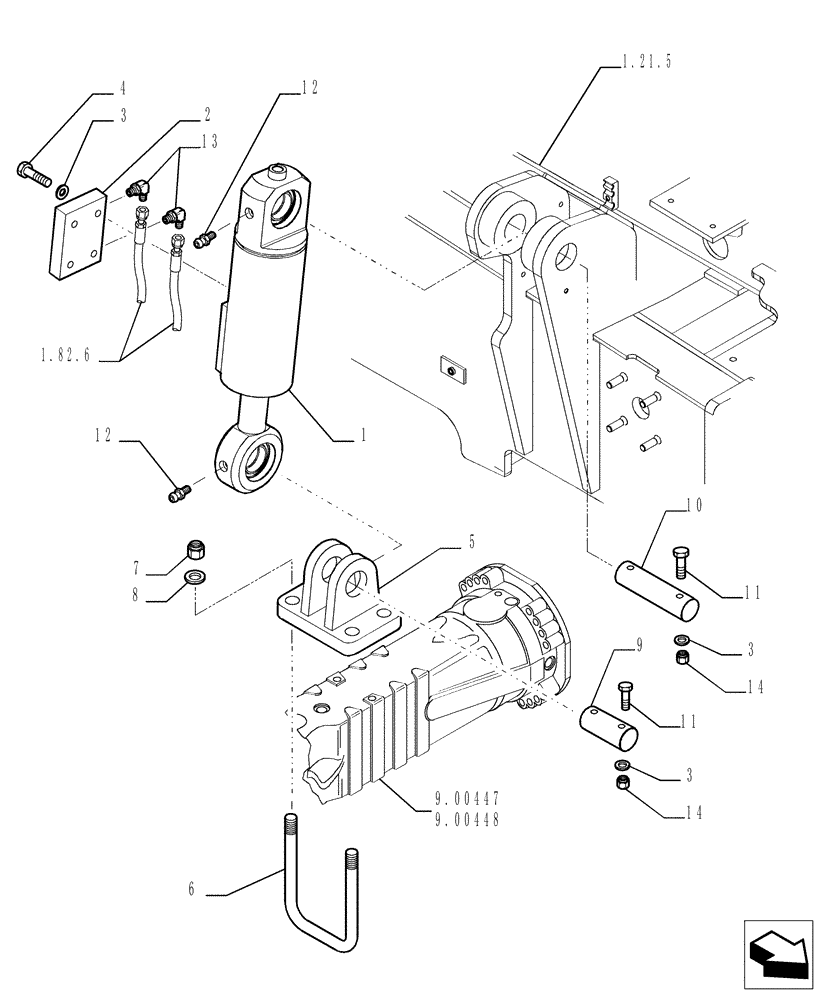

Запчасти Case TX1055 (1.22.1[01]) - GRADING CYLINDER (35) - HYDRAULIC SYSTEMS

1

87590840

CYLINDER,Double Acting, 50mm Rod, 135mm Stroke

ASSY

1шт.

2

85821215

CHECK VALVE

1шт.

3

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

6шт.

4

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

8X55

4шт.

5

87691778

HITCH

1шт.

6

87691779

SUPPORT

2шт.

7

12575127

NUT,M20

x 1.5

4шт.

8

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

9

76094878

PIN,50mm OD x 150mm L

1шт.

10

76094879

PIN,50mm OD x 230mm L

1шт.

11

16044531

SCREW,Hex, M8 x 65mm, Cl 10.9

4шт.

12

13407211

LUBE NIPPLE,M10 x 1

8

2шт.

12

87706324

LUBE NIPPLE

- IN ALTERNATIVE

2шт.

13

85803233

90 ELBOW,11/16"-16 ORFS x 3/4"-16 ORB

2шт.

14

16104121

NUT,M8 x 1.25, Cl 10

4шт.
