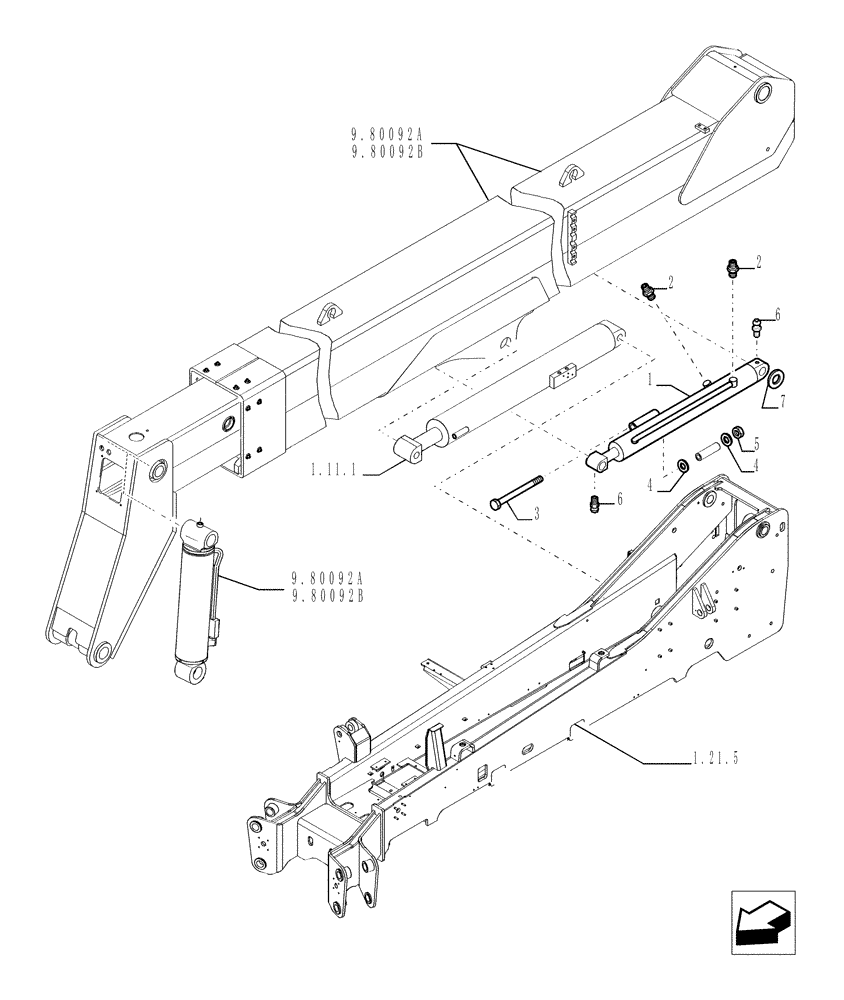

Запчасти Case TX1055 (1.11.2[01]) - COMPENSATION CYLINDER (35) - HYDRAULIC SYSTEMS

1

87625943

CYLINDER,Double Acting, 40mm Rod, 1232mm Stroke

- ASSY SEE PAG.2, Start Serial: XXX

1шт.

1

85815571

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 1224mm Stroke

- ASSY SEE PAG.3, Serial Range: -XXX

1шт.

2

85809049

FITTING,11/16"-16 ORFS x 3/4"-16 ORB

2шт.

3

15864331

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

4

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

5

15504021

NUT,M16 x 1.5

1шт.

6

13407211

LUBE NIPPLE,M10 x 1

16X1.5

2шт.

7

85824153

WASHER

16X1.5

1шт.
