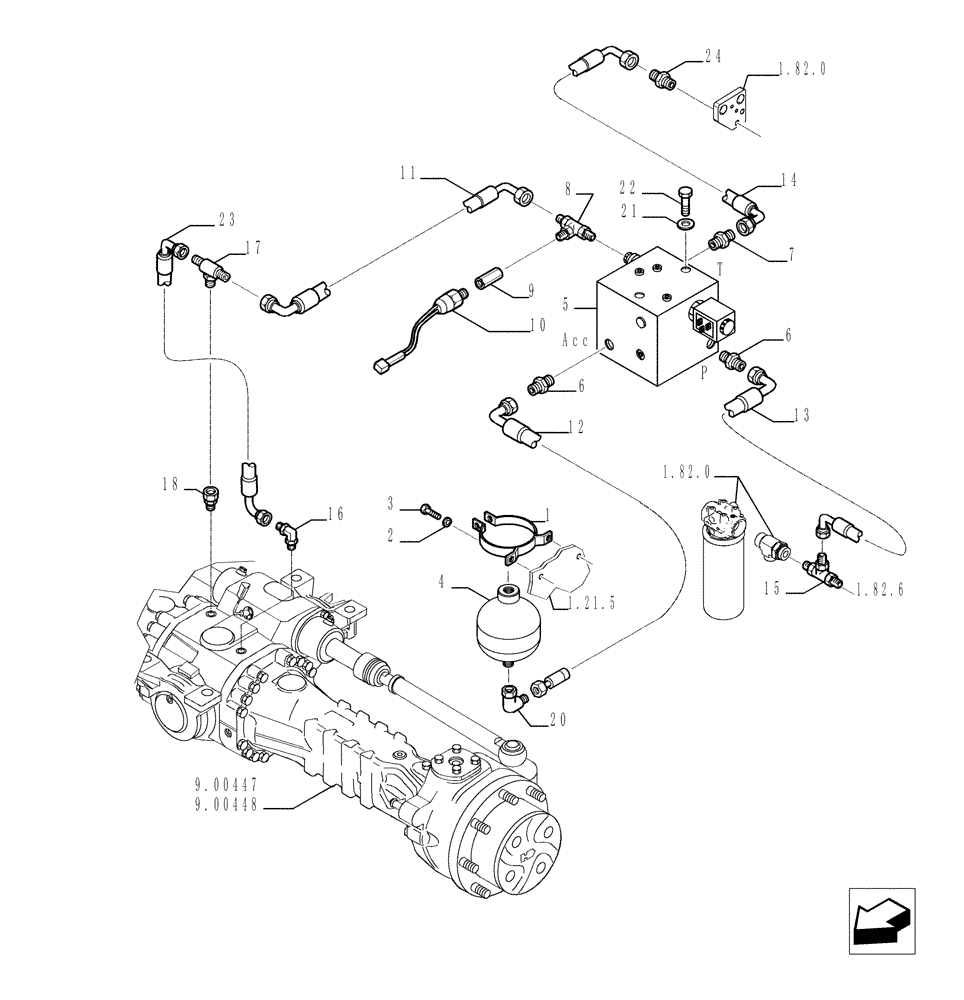

Запчасти Case TX1055 (1.65.A[01]) - PARKING BRAKE (33) - BRAKES & CONTROLS

1

87750104

CLAMP

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

3

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

4

87750097

ACCUMULATOR

1шт.

5

87750099

HYDRAULIC VALVE

1шт.

6

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

2шт.

7

83985067

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

Includes O-Rings 9617873 & 9992298

1шт.

8

87671386

FITTING

1шт.

9

87671387

FITTING

1шт.

10

76071715

PRESSURE SWITCH

1шт.

11

87750100

FLEXIBLE HOSE

1шт.

12

87750101

FLEXIBLE HOSE

1шт.

13

87750102

FLEXIBLE HOSE

1шт.

14

87750103

FLEXIBLE HOSE

1шт.

15

87750098

FITTING

1шт.

16

79067017

ELBOW

1шт.

17

79066985

HYD CONNECTOR

1шт.

18

76081924

HYD CONNECTOR

1шт.

19

76076056

QUICK MALE COUPLING

- not illustrated

1шт.

20

87750105

FITTING

1шт.

21

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

22

16045321

BOLT,Hex, M8 x 1.25 x 105mm, Cl 8.8

2шт.

23

87694861

RIGID TUBE,8 mm DIA x 339, 89 mm L

1шт.

24

83963376

FITTING,13/16"-16 ORFS x 7/8"-14 ORB

1шт.
