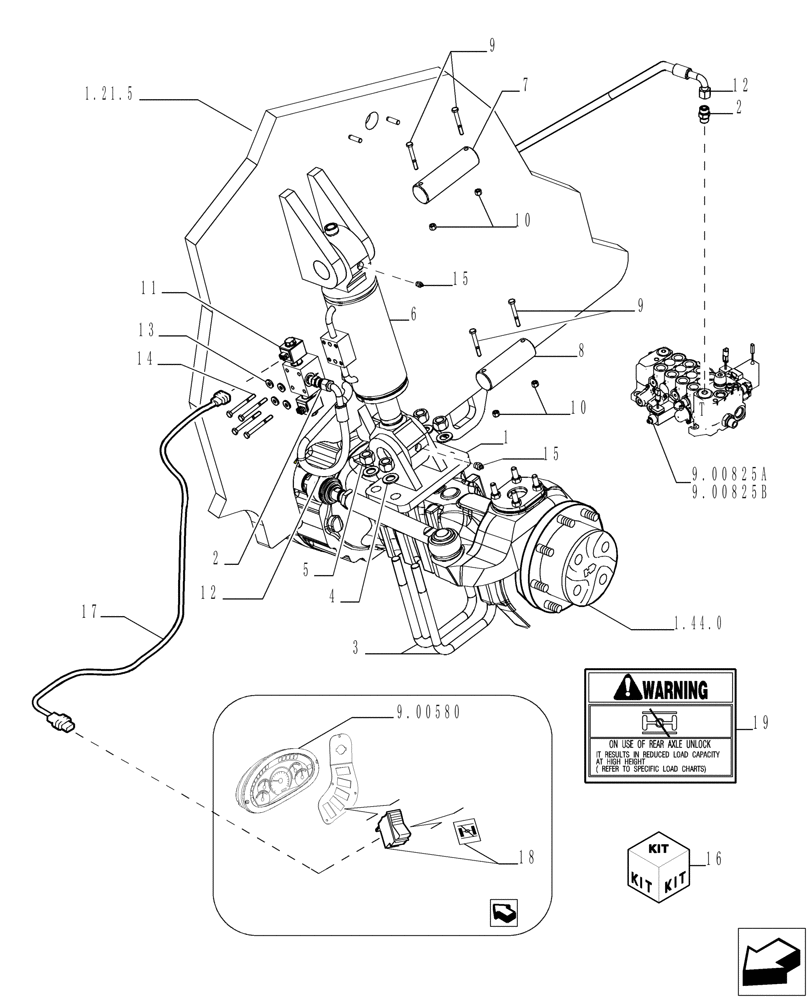

Запчасти Case TX1055 (1.44.3[01]) - REAR AXLE LOCK (27) - REAR AXLE SYSTEM

1

87691778

HITCH

1шт.

2

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

2шт.

3

87691779

SUPPORT

2шт.

4

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

5

86015195

NUT,M20 x 1.5, Cl 10

4шт.

6

87590840

CYLINDER,Double Acting, 50mm Rod, 135mm Stroke

- ASSY SEE PAG. 2

1шт.

7

76094880

PIN,50mm OD x 172mm L

1шт.

8

76094878

PIN,50mm OD x 150mm L

1шт.

9

16044531

SCREW,Hex, M8 x 65mm, Cl 10.9

4шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

85821216

SAFETY VALVE

1шт.

12

85823913

FLEXIBLE HOSE

1шт.

13

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

14

16044831

SCREW,Hex, M8 x 80mm, Cl 10.9

4шт.

15

13407211

LUBE NIPPLE,M10 x 1

2шт.

16

87633172

KIT

- KIT

1шт.

17

87633173

HARNESS

1шт.

KIT - 87633172

1шт.

18

87633174

SWITCH ASSY

1шт.

KIT - 87633172

1шт.

19

84126341

DECAL

- ENGLISH

1шт.

19

84126343

DECAL

- FRENCH

1шт.

19

84126342

DECAL

- SPANISH

1шт.
