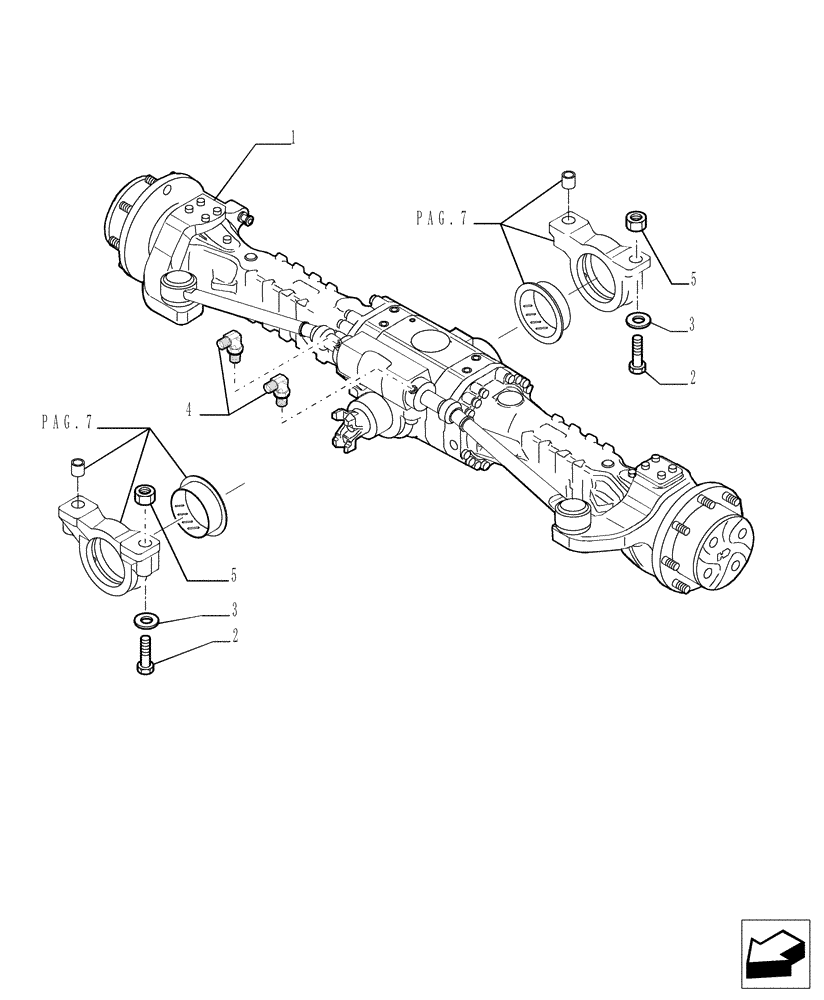

Запчасти Case TX1055 (1.44.0[01]) - REAR AXLE (27) - REAR AXLE SYSTEM

1

87681620

REAR AXLE

- ASSY SEE PAG.2-7

1шт.

2

15999331

BOLT,Hex, M24 x 2 x 260mm, Cl 10.9

4шт.

3

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

4шт.

4

83971549

90 ELBOW,13/16"-16 ORFS x 3/4"-16 ORB

2шт.

5

12575321

NUT,M24 x 2, Cl 10

4шт.
