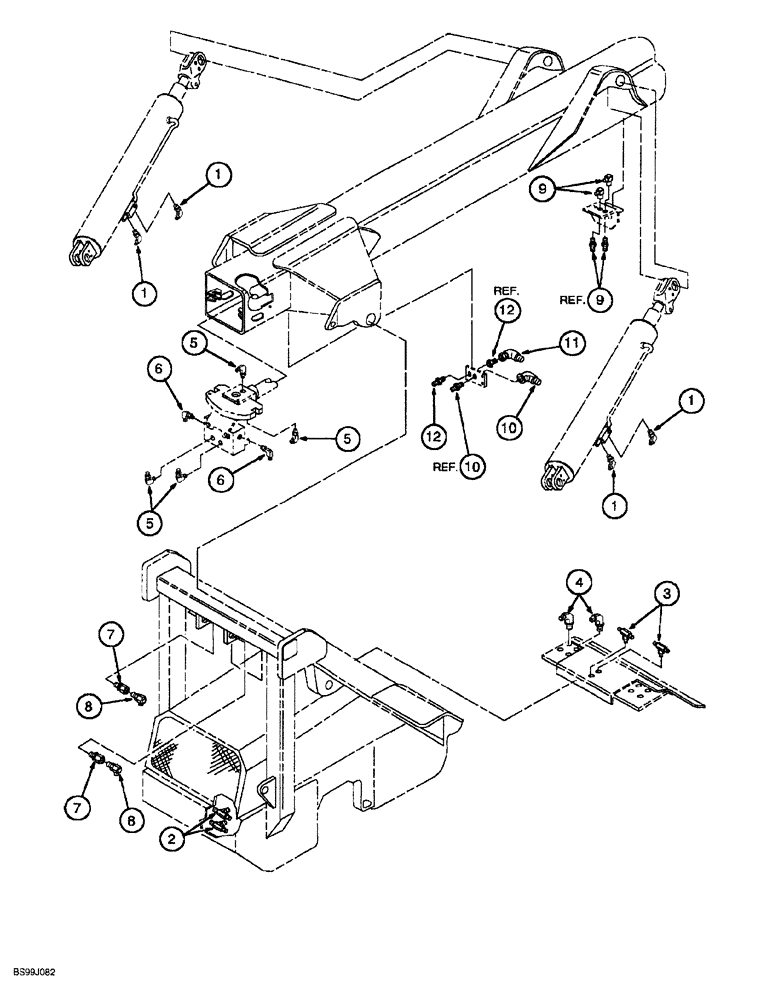

Запчасти Case 689G (08-18) - BOOM CYLINDER CONTROL LINES, HYDRAULIC FITTINGS (08) - HYDRAULICS

1

373714A1

ADAPTER

ELBOW, 90°

2шт.

2

309936A1

ADAPTER

TEE hydraulic

2шт.

3

315219A1

TEE

hydraulic

2шт.

4

309937A1

ADAPTER

ELBOW, 90°

2шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj O-ring boss

4шт.

6

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW, 90°, 1-1/16 12 flare x 7/8-14 inch adj O-ring boss

2шт.

7

310398A1

ADAPTER

straight

2шт.

8

310372A1

FITTING

SWIVEL ASSEMBLY hydraulic

2шт.

9

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

10

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

12

317794A1

UNION

hydraulic

1шт.
