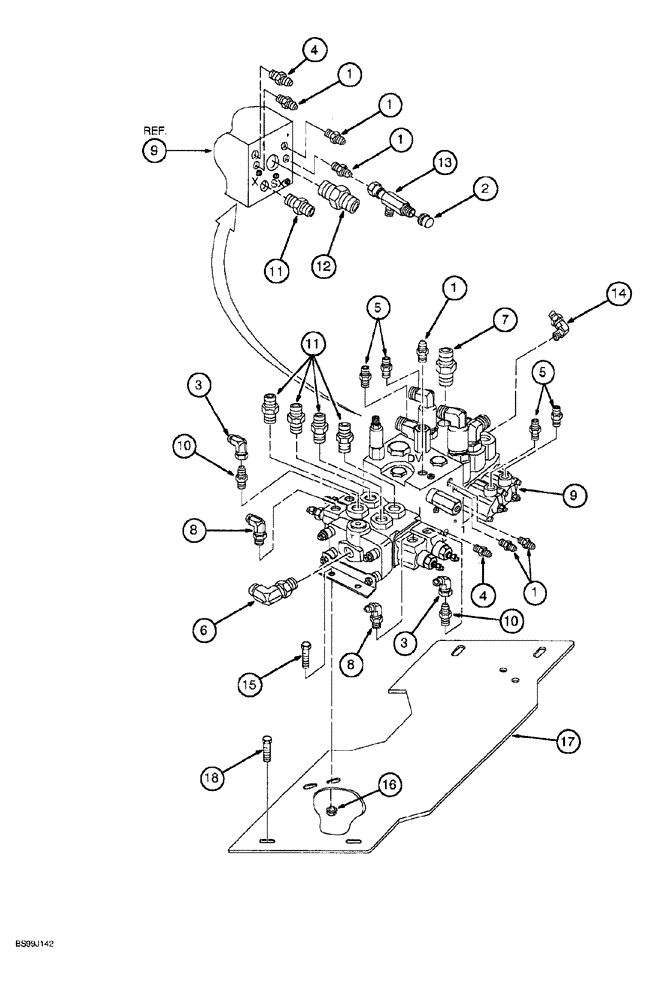

Запчасти Case 689G (08-12) - CONTROL VALVE MOUNTING AND FITTINGS (08) - HYDRAULICS

1

309942A1

ADAPTER

straight

6шт.

2

309948A1

CAP

hydraulic

1шт.

3

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

ELBOW, 90°, 7/16-20 inch flare x swivel

2шт.

4

309979A1

ADAPTER

straight

2шт.

5

309970A1

ADAPTER

straight

4шт.

6

309958A1

ADAPTER

ELBOW, 90°

1шт.

7

309965A1

ADAPTER

straight

1шт.

8

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°, 7/16-20 flare x 9/16-18 inch adj O-ring boss

2шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY hydraulic control parts list Figure 8-44

1шт.

10

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Adapter, Straight, O-ring boss

2шт.

11

309983A1

ADAPTER

straight

5шт.

12

309966A1

ADAPTER

straight

1шт.

13

309984A1

ADAPTER

TEE hydraulic

1шт.

14

309959A1

ADAPTER

ELBOW, 90°

1шт.

15

310025A1

BOLT

hex, 3/8 NC x 1 inch

3шт.

16

310000A1

LOCK NUT

hex, 3/8 inch NC

3шт.

17

310149A1

PLATE

valve mounting

1шт.

18

309996A1

BOLT

hex, 1/2 NC x 1 inch

4шт.
