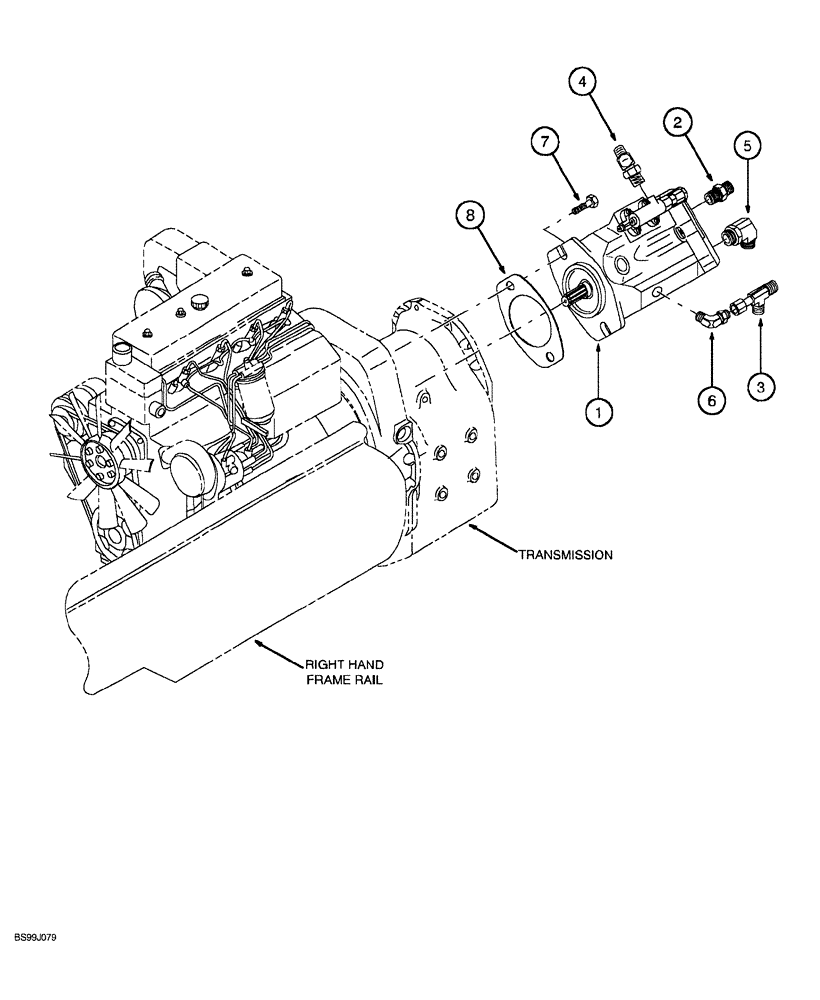

Запчасти Case 689G (08-10) - HYDRAULIC PUMP, MOUNTING AND FITTINGS (08) - HYDRAULICS

1

355715A1

PUMP, HYDRAULIC

ASSEMBLY hydraulic, parts list Figure 8-60

1шт.

2

309966A1

ADAPTER

straight

2шт.

3

309949A1

TEE

hydraulic

1шт.

4

309974A1

ADAPTER

ELBOW, 45°

1шт.

5

309952A1

ADAPTER

ELBOW, 90°

1шт.

6

309955A1

FITTING

ELBOW, 90°

1шт.

7

310371A1

BOLT

hex flange

2шт.

8

315279A1

GASKET

hydraulic pump

1шт.
