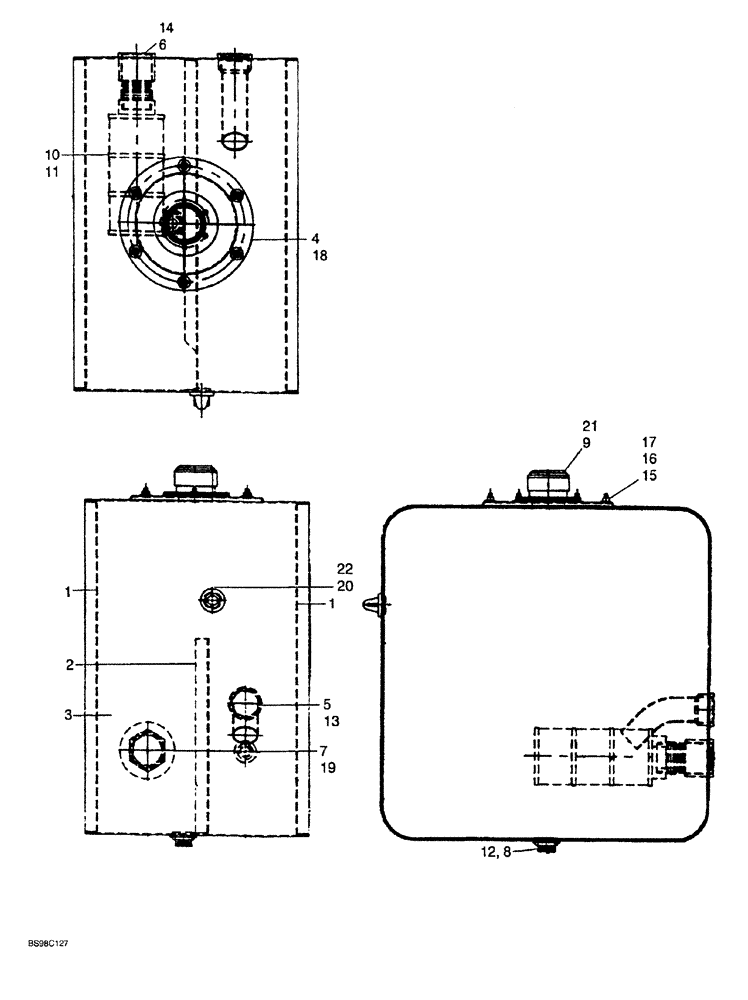

Запчасти Case 689G (08-06) - HYDRAULIC TANK AND COMPONENTS (08) - HYDRAULICS

310152A1

TANK, HYDRAULIC OIL

Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE side, tank

2шт.

2

NSS

NOT SOLD SEPARAT

BAFFLE tank

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL tank

1шт.

4

309835A1

COVER

access top

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE weld

1шт.

6

NSS

NOT SOLD SEPARAT

PIPE weld

1шт.

7

NSS

NOT SOLD SEPARAT

FLANGE weld

1шт.

8

NSS

NOT SOLD SEPARAT

FLANGE weld

1шт.

9

309918A1

BREATHER

tank and fill cover

1шт.

10

309595A1

STRAINER ASSY.

tank

1шт.

11

309836A1

MAGNET

strainer

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG pipe, 3/4 inch NPT

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG hydraulic, 1-1/4 inch

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG hydraulic 1-1/2 inch

1шт.

15

NSS

NOT SOLD SEPARAT

STUD weld, 1/2 inch NF

6шт.

16

309837A1

NUT

hex, 1/4 inch NC

6шт.

17

309838A1

WASHER

flat, 1/4 inch

6шт.

18

309920A1

O-RING

access cover

1шт.

19

NSS

NOT SOLD SEPARAT

COVER plastic

1шт.

20

309917A1

GAUGE

BULB sight, oil level

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW machine, #10NF x 1/2 inch

6шт.

22

NSS

NOT SOLD SEPARAT

O-RING oil level sight bulb

1шт.
