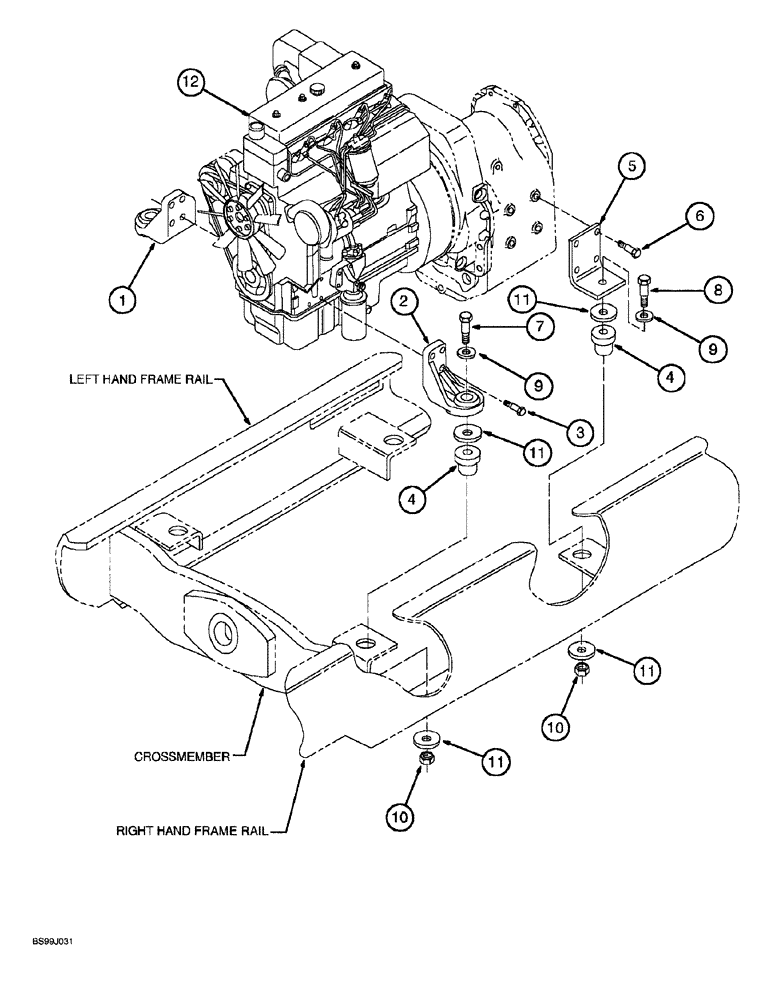

Запчасти Case 689G (02-02) - ENGINE MOUNTING (02) - ENGINE

1

310452A1

BRACKET

engine mounting, right hand

1шт.

2

310453A1

BRACKET

engine mounting, left hand

1шт.

3

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

8шт.

4

310376A1

MOUNTING PARTS

engine

4шт.

5

310265A1

PLATE

transmission mounting

2шт.

6

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

hex, 3/4 NC x 1-3/4 inch, grade 8

8шт.

7

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

8

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

9

495-21069

WASHER,5/8"

flat, 11/16 x 1 -3/4 x 9/64 inch

4шт.

10

232-42410

LOCK NUT,5/8"-11, GC

4шт.

11

310387A1

WASHER

special

8шт.

12

REF

INSTRUCTION

ENGINE ASSEMBLY Telescopic Handler

1шт.
