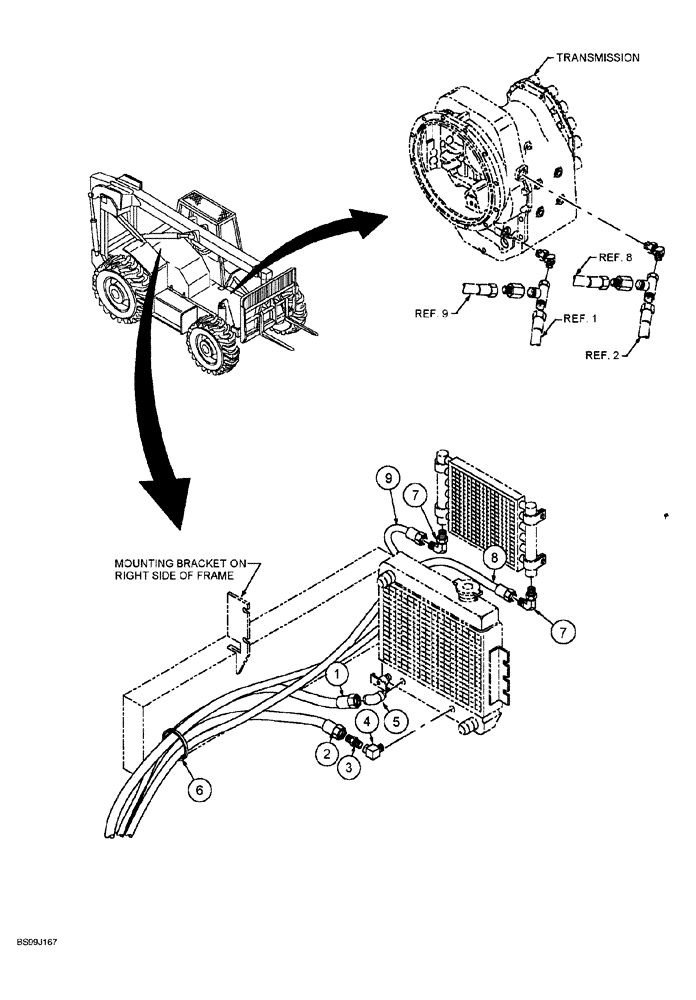

Запчасти Case 689G (08-02) - COOLER HYDRAULICS (08) - HYDRAULICS

1

310098A1

HOSE ASSY.

at right-hand side of radiator to right-hand side of cooler

1шт.

2

310100A1

HOSE ASSY.

at left-hand side of radiator to left-hand side of cooler

1шт.

3

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

straight 1-1/16-12 flare x 3/4 inch PT

1шт.

4

310339A1

ADAPTER

ELBOW, 90°

1шт.

5

310337A1

ADAPTER

ELBOW, 45°

1шт.

6

317797A1

STRAP

tie

1шт.

7

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

3/4-16 flare x 3/4 inch PT, 90°

2шт.

8

310380A1

HOSE ASSY.

at left-hand side of cooler to left-hand side of radiator

1шт.

9

310378A1

HOSE ASSY.

at right-hand side of cooler to right-hand side of radiator

1шт.
