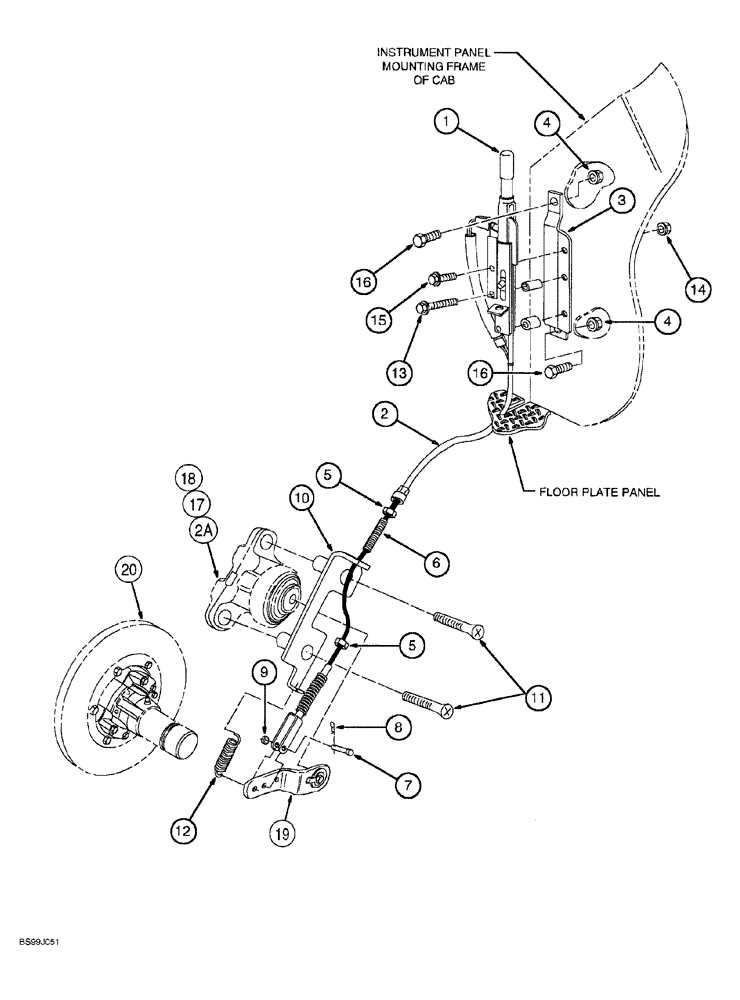

Запчасти Case 689G (07-06) - PARKING BRAKE (07) - BRAKES

1

309274A1

BRAKE ASSY.

parking, Includes: Ref. 1A, 1B, 1C, 1D, 1E and 1F

1шт.

1a

309284A1

CLAMP

cable, not shown

1шт.

1b

309285A1

SPACER

not shown

1шт.

1c

309286A1

SPACER

not shown

2шт.

1d

309301A1

KEY

cotter, not shown

1шт.

1e

309302A1

WASHER

flat not shown

1шт.

1f

309303A1

PIN

not shown

1шт.

334245A1

KIT

cable, parking brake, Includes: Ref. 2, 2A and 11

1шт.

2

334560A1

CABLE

parking brake

1шт.

2a

313407A1

PAD

HOLDER pad, brake cahper

1шт.

11

61-46248

BOLT,Flat Hd, 5/8" - 11 x 3"

hex socket, 5/8 NC x 3 inch

2шт.

3

309860A1

BRACKET

mounting, parking brake

1шт.

4

310000A1

LOCK NUT

hex, self-locking, 3/8 inch NC

2шт.

5

309260A1

SCREW

lock

2шт.

6

309945A1

SCREW

machine, self locking, 5/16 NC x 1-1/4 inch

2шт.

7

310087A1

CLEVIS PIN

1шт.

8

432-816

COTTER PIN,1/8" x 1"

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

10

339185A1

PLATE

BRACKET parking brake cable

1шт.

11

61-46248

BOLT,Flat Hd, 5/8" - 11 x 3"

hex socket, 5/8 NC x 3 inch

2шт.

12

309861A1

SPRING

return

1шт.

13

309260A1

SCREW

lock

2шт.

14

309986A1

LOCK NUT

hex, 5/16 inch NC

2шт.

15

309995A1

BOLT

hex, self-locking, 5/16 NC x 3/4 inch

1шт.

16

310366A1

BOLT

Ferry head

2шт.

17

359310A1

BRAKE ASSY.

CALIPER parking, Includes: Ref. 18

1шт.

18

330538A1

KIT

caliper pad

1шт.

19

REF

INSTRUCTION

LEVER brake

1шт.

20

REF

INSTRUCTION

WHEEL brake

1шт.
