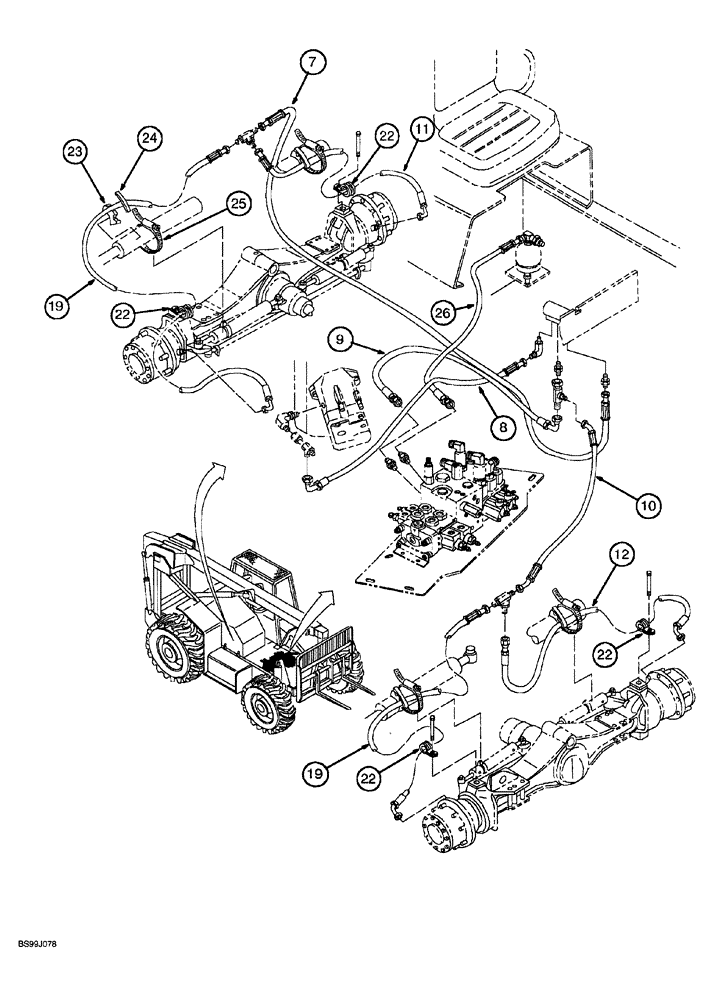

Запчасти Case 689G (07-04) - BRAKE LINES (07) - BRAKES

7

309846A1

HOSE ASSY.

1473 mm (58 inch) long

1шт.

8

309851A1

HOSE ASSY.

1092 mm (43 inch) long

1шт.

9

309218A1

HOSE

2210 mm (87 inch) long

1шт.

10

309847A1

HOSE ASSY.

1753 mm (69 inch) long

1шт.

11

373107A1

HOSE ASSY.

940 mm (37 inch) long

1шт.

19

309855A1

HOSE ASSY.

1334 mm (52-1/2 inch) long

2шт.

22

310019A1

CLAMP

hose

4шт.

23

310298A1

TUBE SPACER

SADDLE

4шт.

24

309862A1

GUARD

hose

4шт.

25

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

Adj.

4шт.

26

310264A1

HOSE ASSY.

1600 mm (63 inch) long

1шт.
