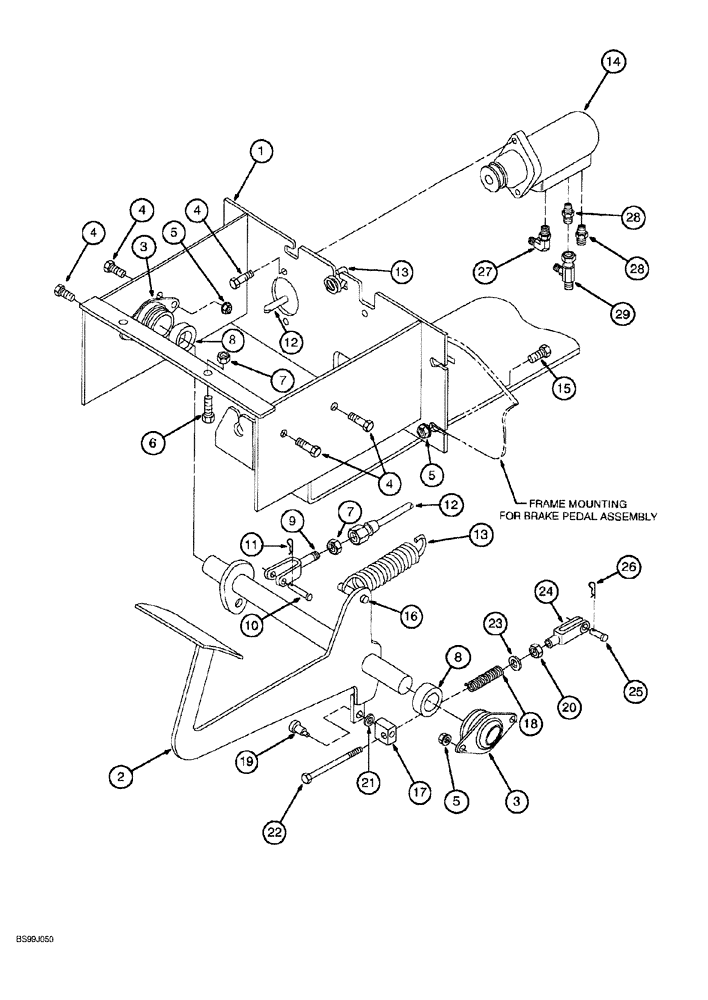

Запчасти Case 689G (07-02) - SINGLE BRAKE PEDAL AND LINKAGE (07) - BRAKES

1

310151A1

BRACKET

mounting, brake pedal and valve

1шт.

2

309234A1

PEDAL

brake

1шт.

3

310441A1

FLANGED BEARING

flanged at pedal rod

2шт.

4

310366A1

BOLT

Ferry head

6шт.

5

310000A1

LOCK NUT

hex, self-locking, 3/8 inch NC

8шт.

6

428-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

1шт.

7

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

8

310075A1

COLLAR

locking

2шт.

9

310300A1

YOKE

UNIVERSAL JOINT YOKE CLEVIS, push, Serial Range: rod-pedal

1шт.

10

309136A1

CLEVIS PIN

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1шт.

12

310315A1

PUSH ROD

1шт.

13

310459A1

SPRING

pedal return

1шт.

14

310173A1

VALVE, BRAKE

ASSEMBLY brake

1шт.

14a

309300A1

KIT

repair, brake valve, not shown

1шт.

15

310368A1

BOLT

hex

4шт.

16

310349A1

PIN

groove

1шт.

17

309233A1

BLOCK

anchor, clevis

1шт.

18

309235A1

SPRING

return, cable

1шт.

19

121-126

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

1шт.

20

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

21

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

22

428-440

BOLT,Hex, 1/4" - 28 x 2-1/2", Gr 8

hex, 1/4 NF x 2-1/2 inch, grade 8

1шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

24

309943A1

YOKE

UNIVERSAL JOINT YOKE CLEVIS

1шт.

25

310021A1

CLEVIS PIN

1шт.

26

432-48

COTTER PIN,1/16" x 1/2"

1шт.

27

309956A1

ADAPTER

ELBOW, 90°

1шт.

28

309983A1

ADAPTER

straight

2шт.

29

309988A1

TEE

hydraulic

1шт.
