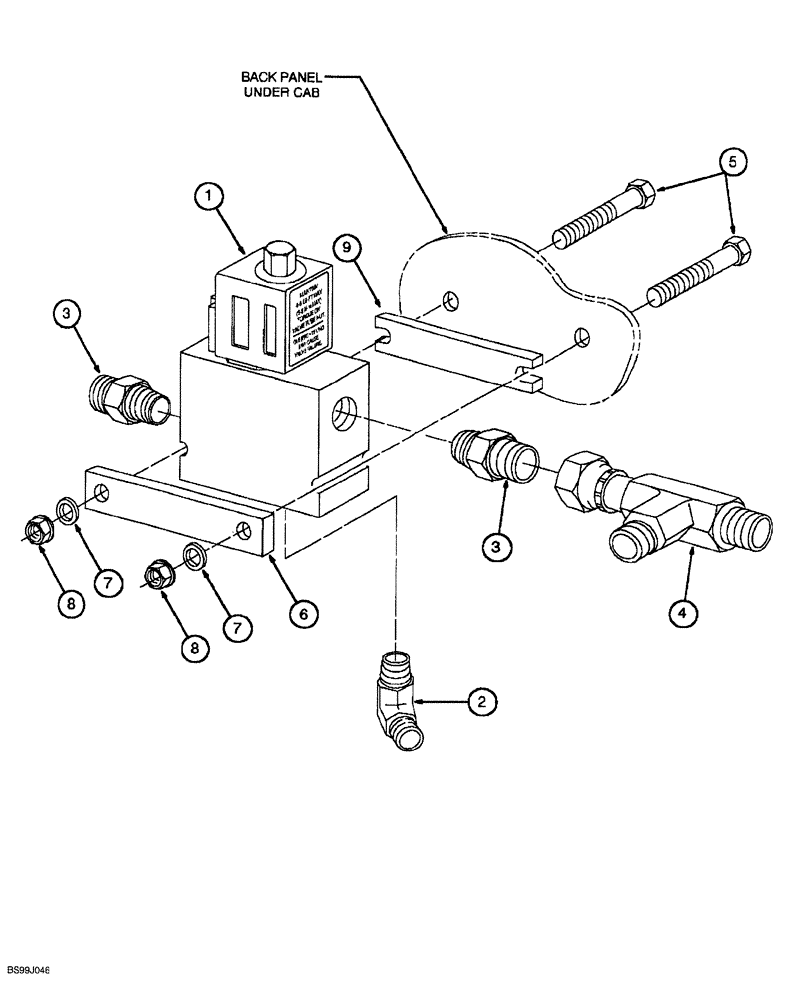

Запчасти Case 689G (06-08) - BRAKE VALVE AND MOUNTING (07) - BRAKES

1

313692A1

VALVE, BRAKE

ASSEMBLY, Includes: Ref. 1A and 1B

1шт.

1a

379784A1

SOLENOID VALVE

VALVE solenoid, not shown

1шт.

1b

379785A1

SEAL KIT

seal, brake valve, not shown

1шт.

2

309961A1

ADAPTER

ELBOW, 90°

1шт.

3

309969A1

ADAPTER

straight

2шт.

4

309949A1

TEE

hydraulic

1шт.

5

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

hex, 1/4 NC x 3 inch, grade 8

2шт.

6

309902A1

COVER

STRAP mounting

1шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

8

231-1444

NUT,1/4"-20, GB

2шт.

9

309853A1

PLATE, SPACER

PLATE,SPACER

1шт.
