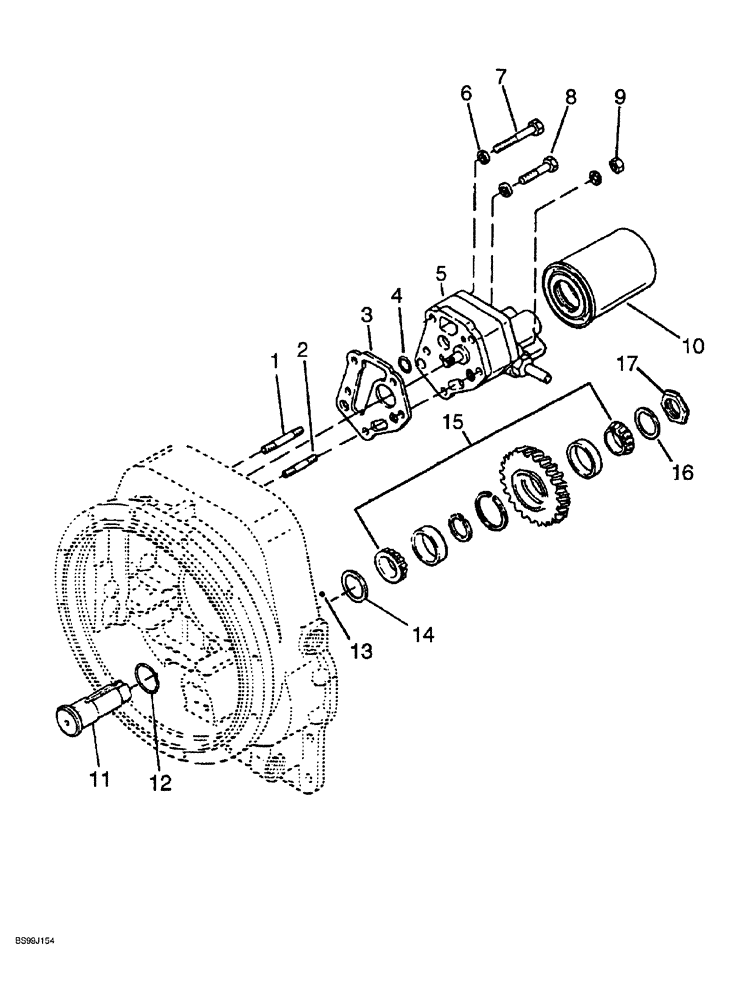

Запчасти Case 689G (06-48) - TRANSMISSION COMPONENTS, CHARGE PUMP AND FILTER (06) - POWER TRAIN

309882A1

TRANSMISSION

ASSEMBLY complete, parts list Figures 6-34 - 6-50, Includes: Ref. 1 - 17

1шт.

1

361546A1

STUD

pump mounting

1шт.

2

361563A1

STUD

pump mounting

1шт.

3

314005A1

GASKET

pump

1шт.

4

310217A1

O-RING

pump port

1шт.

5

361565A1

PUMP

ASSEMBLY charging components not established forservice at time of printing

1шт.

6

361567A1

LOCK WASHER

lock

5шт.

7

361568A1

SCREW

hex

1шт.

8

361569A1

SCREW

hex

2шт.

9

361570A1

NUT

hex

2шт.

10

314016A1

FILTER

transmission

1шт.

11

361573A1

SHAFT

reverse idler

1шт.

12

361585A1

O-RING

shaft

1шт.

13

361609A1

BALL

lock

1шт.

14

361614A1

PLATE, THRUST

1шт.

15

361615A1

GEAR-SET

idler shaft

1шт.

16

361616A1

PLATE, THRUST

1шт.

17

361617A1

NUT

hex

1шт.
