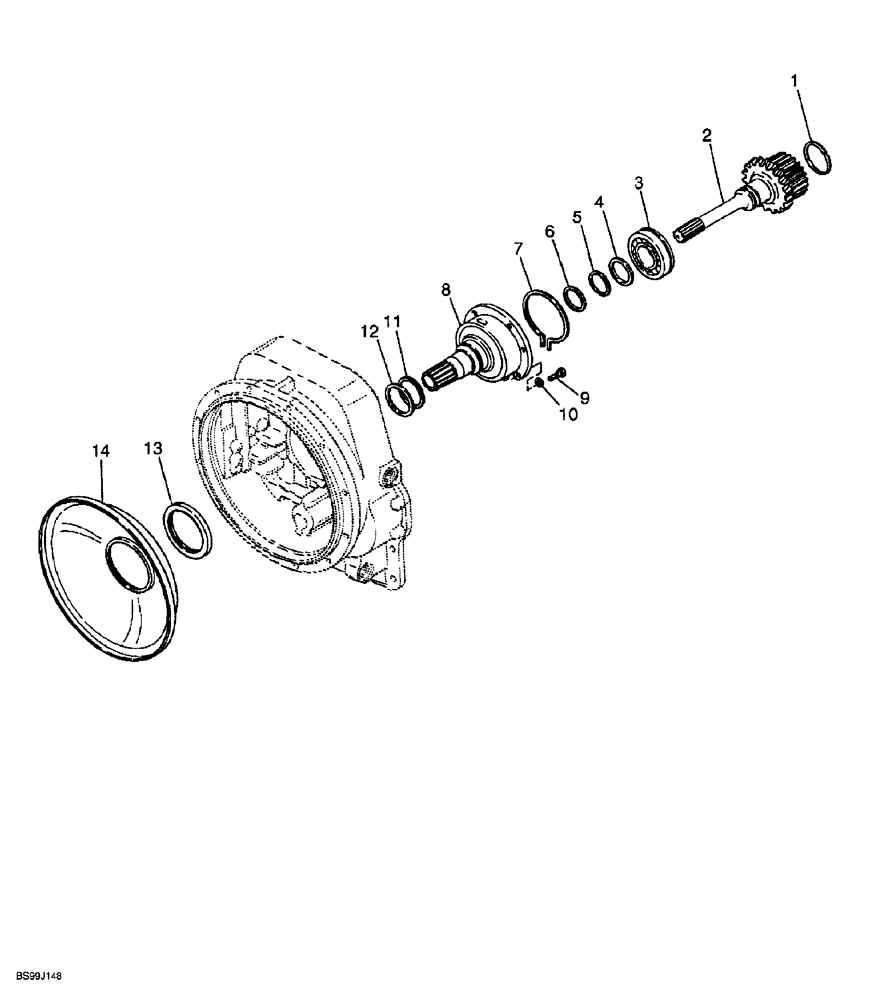

Запчасти Case 689G (06-36) - TRANSMISSION COMPONENTS, TURBINE SHAFT AND STATOR SUPPORT (06) - POWER TRAIN

309882A1

TRANSMISSION

ASSEMBLY complete, parts list Figures 6-34 - 6-50, Includes: Ref. 1 - 14 and shaft assy.

1шт.

310219A1

SHAFT

ASSEMBLY turbine, Includes: Ref. 1 and 2

1шт.

1

310204A1

RING, SNAP

RING SNAP retaining

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT turbine

1шт.

3

309199A1

BALL BEARING

turbine shaft

1шт.

4

309174A1

WASHER

flat

1шт.

5

309175A1

RING, SNAP

RING SNAP retaining

1шт.

6

309176A1

RING, PISTON

1шт.

7

309173A1

RING, SNAP

RING SNAP

1шт.

8

309365A1

SUPPORT

stator

1шт.

9

310221A1

SCREW

hex

6шт.

10

309147A1

LOCK WASHER

6шт.

11

309179A1

SPRING

expander, spring

1шт.

12

309178A1

RING, PISTON

1шт.

13

309180A1

SEAL

oil

1шт.

14

309181A1

BAFFLE

oil

1шт.
