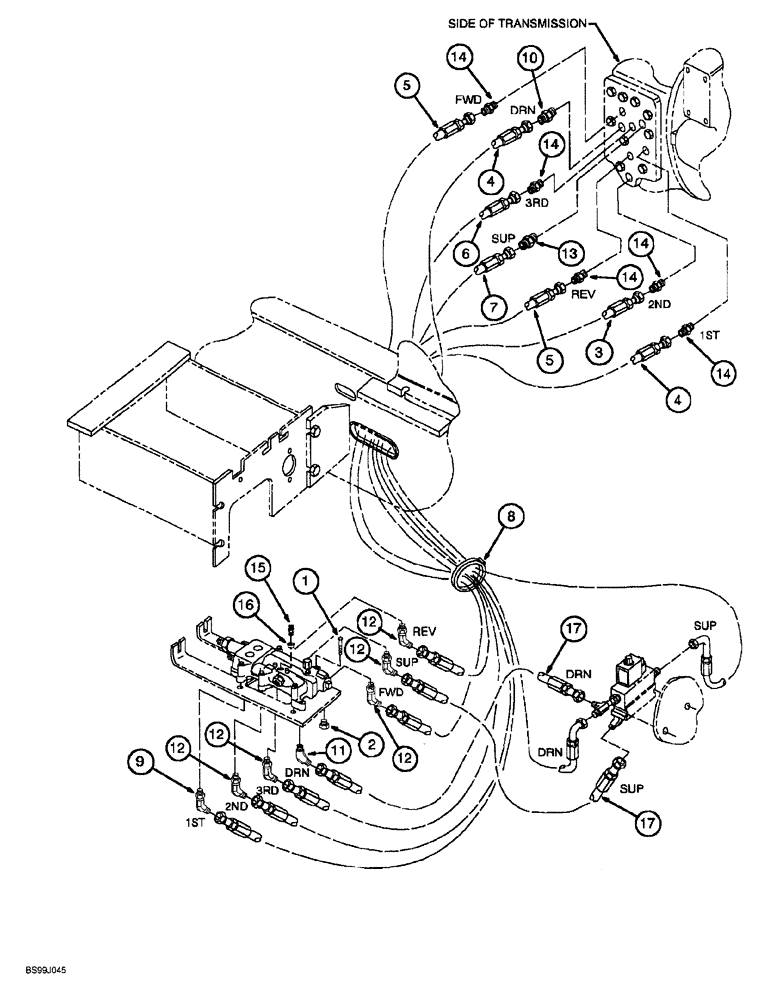

Запчасти Case 689G (06-06) - TRANSMISSION HYDRAULICS (06) - POWER TRAIN

1

310366A1

BOLT

Ferry head

4шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. Ref 2A

1шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not shown

1шт.

3

310121A1

HOSE ASSY.

699 mm (27-1/2 inch) long

1шт.

4

310118A1

HOSE ASSY.

775 mm (30-1/2 inch) long

2шт.

5

310123A1

HOSE ASSY.

838 mm (33 inch) long

2шт.

6

310116A1

HOSE ASSY.

813 mm (32 inch) long

1шт.

7

310119A1

HOSE ASSY.

838 mm (33 inch) long

1шт.

8

317797A1

STRAP

tie

1шт.

9

309972A1

ADAPTER

ELBOW, 45°

1шт.

10

309992A1

ADAPTER

straight

1шт.

11

309950A1

ADAPTER

straight

1шт.

12

309990A1

ADAPTER

ELBOW, 45 °

1шт.

13

309968A1

ADAPTER

straight

5шт.

14

309979A1

ADAPTER

straight

1шт.

15

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

straight, 7/16-20 flare x 1/8 inch PT

5шт.

16

218-752

CAP,37 Degree, 7/16"-20

hex, 7/16, 20 inch

1шт.

17

309859A1

HOSE ASSY.

610 mm (24 inch) long

2шт.
