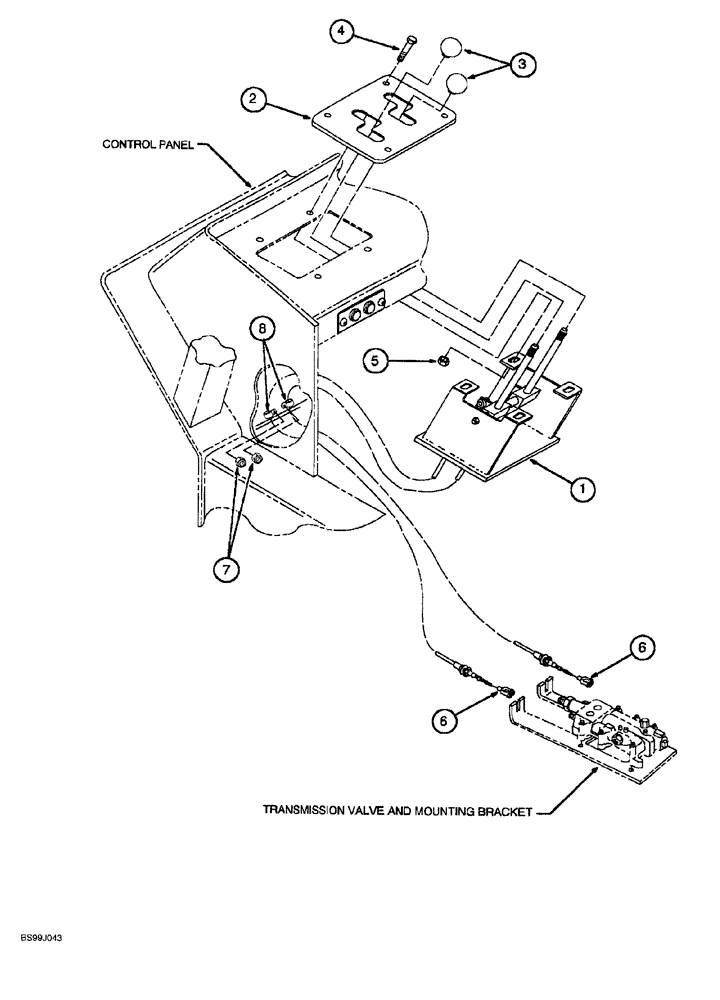

Запчасти Case 689G (06-02) - TRANSMISSION CONTROLS (06) - POWER TRAIN

1

REF

INSTRUCTION

LEVER ASSEMBLY transmission control, parts list Figure 6-04

1шт.

2

310449A1

PLATE

shifter

1шт.

3

310364A1

KNOB

control lever

2шт.

4

61-72516

HEX SOC SCREW,Btn Hd, 1/4"-20 x 1"

hex socket, 1/4 NC x 1 inch

4шт.

5

309941A1

LOCK NUT

hex, 1/4 inch NC

4шт.

6

310051A1

END

CLEVIS cable

2шт.

7

309986A1

LOCK NUT

hex, 5/16 inch NC

2шт.

8

310409A1

CLAMP

cable

2шт.
