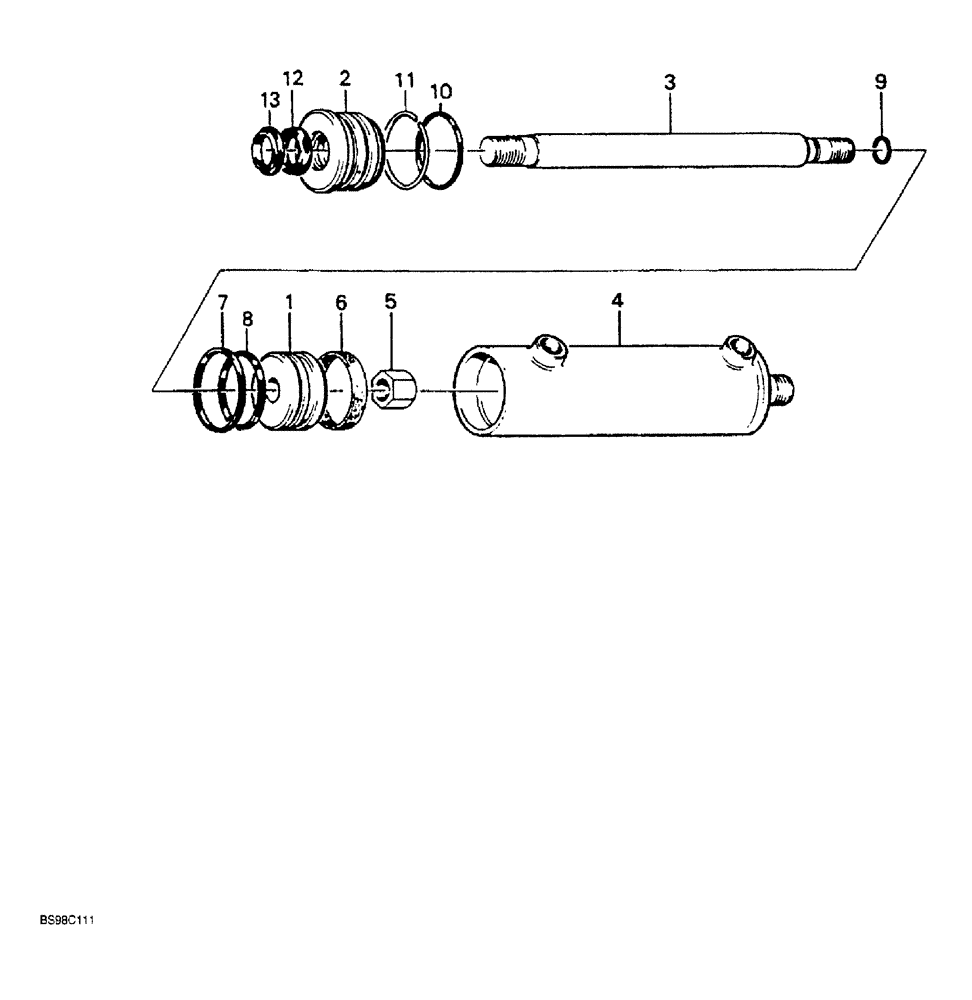

Запчасти Case 689G (06-26) - STEERING CYLINDER (05) - STEERING

313383A1

CYLINDER

ASSEMBLY steering, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

318444A1

SEAL KIT

seal, steering cylinder, Includes: Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

PACKING piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING piston

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, Serial Range: gland-tube

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

i3

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.
