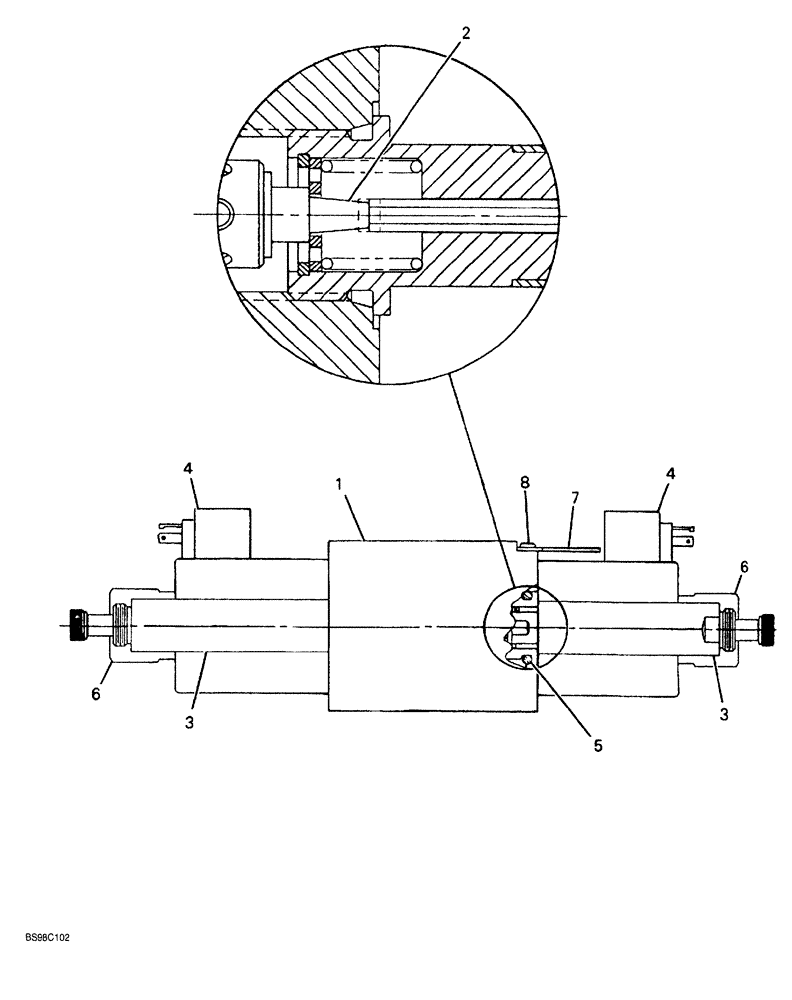

Запчасти Case 689G (05-12) - STEERING SELECTOR VALVE (05) - STEERING

309253A1

VALVE STEM

ASSEMBLY steering selector, Includes: Ref. 1 - 8

1шт.

1

309440A1

BLOCK

HOUSING valve

1шт.

2

309439A1

SPOOL

valve

2шт.

3

309447A1

TUBE

ASSEMBLY valve, Includes: Ref. 3A, 3B and 3C

1шт.

3a

309441A1

SPRING

return, not shown

1шт.

3b

309442A1

RETAINER

spring, not shown

1шт.

3c

309443A1

RING, SNAP

RING SNAP retainer, not shown

1шт.

4

309438A1

COIL

ASSEMBLY electrical

2шт.

4a

316753A1

CONNECTOR, ELEC

CONNECTOR electrical, not shown

2шт.

5

309446A1

O-RING

valve housing

2шт.

6

309444A1

NUT

special

2шт.

7

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

8

309445A1

SCREW

machine

1шт.
